View larger

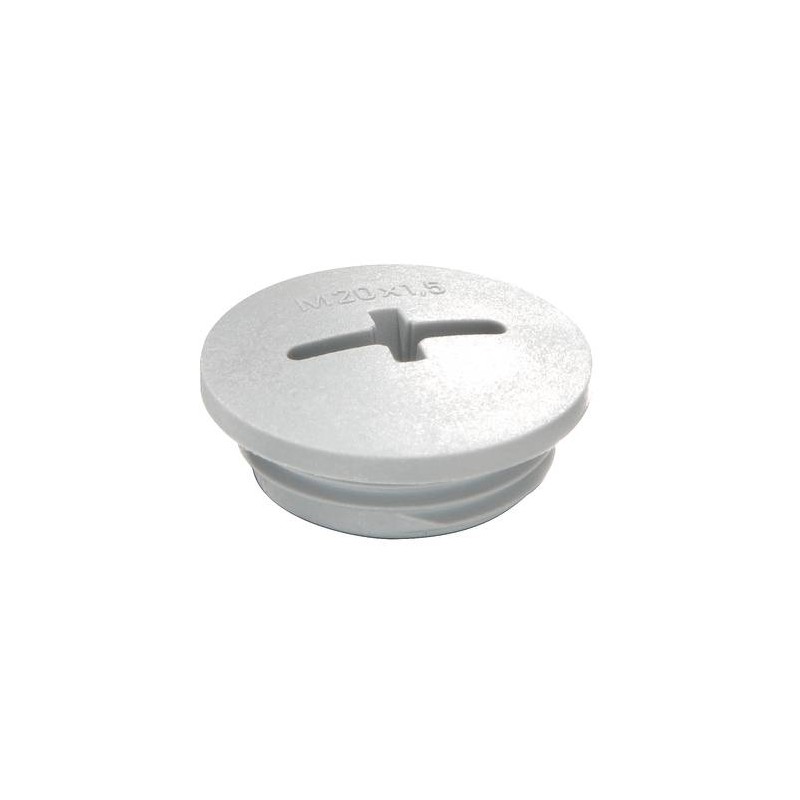

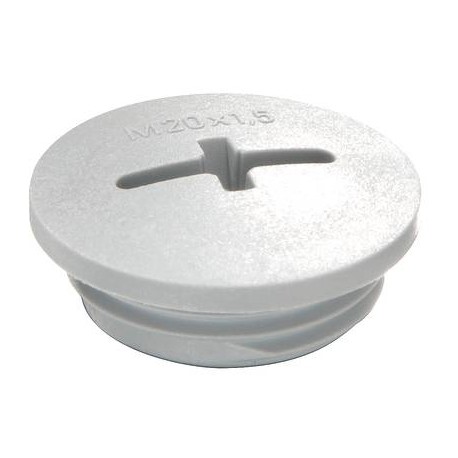

EVSG 20/GL 10060626 WISKA Light grey round cap RAL 7035, PA IP56 thread M20
EVSG 20/GL
10060626
WISKA
100
Light grey round cap RAL 7035, PA IP56 thread M20
Stop end, polyamide, RAL 7035, M20
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material | Polyamide, fibre reinforced |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Glow wire test | 650 °C |
| Protection class | IP56 |
| Advice | with sealing IP66/IP68 |
| Thread type | M |
| Ø Connection thread D | 20 |
| Lead | 1,5 |
| Length screw-in thread L | 6 mm |
| Total length TL | 9,5 mm |
| External diameter ED | 24 mm |
| Product Color | RAL 7035 |
| Order no. RAL 7035 | 10060626 |
| Type | EVSG 20 |
| Packing unit | 100 |
| ETIM-Classification | EC000032 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| EVSG 20/GL 10060626 EN_10060626.pdf | 185 Kbytes |
|
