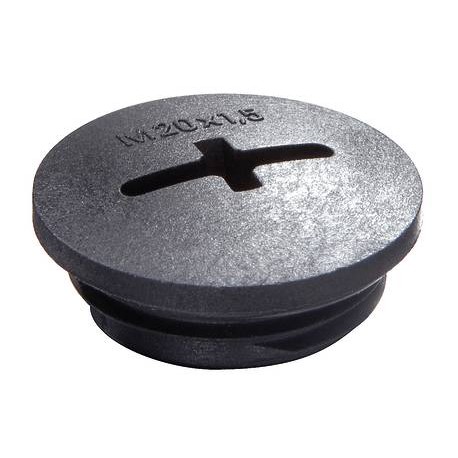

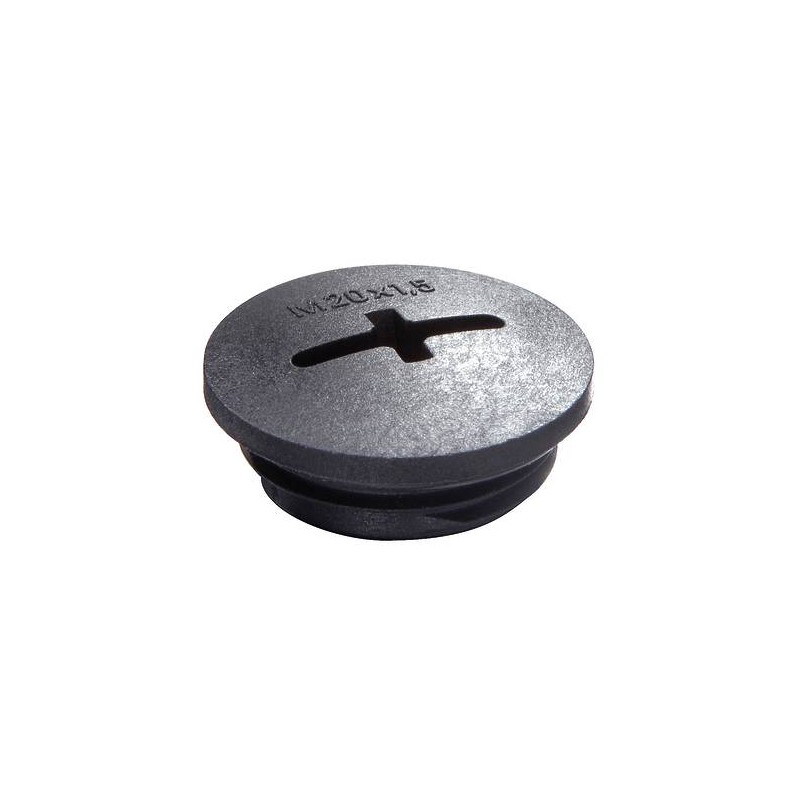

EVSG 20/B
10061832
WISKA
100
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Material | Polyamide, fibre reinforced |
Temp. range min | -40 °C |
Temp. range max | 100 °C |
Glow wire test | 650 °C |
Protection class | IP56 |
Advice | with sealing IP66/IP68 |
Thread type | M |
Ø Connection thread D | 20 |
Lead | 1,5 |
Length screw-in thread L | 6 mm |
Total length TL | 9,5 mm |
External diameter ED | 24 mm |
Product Color | RAL 9005 |
Order no. RAL 9005 | 10061832 |
Type | EVSG 20 |
Packing unit | 100 |
ETIM-Classification | EC000032 |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE WISKA EN.pdf | 12 Mbytes | |
EVSG 20/B 10061832 EN_10061832.pdf | 240 Kbytes |
