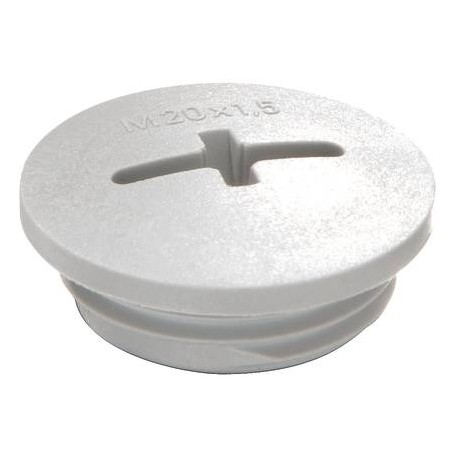

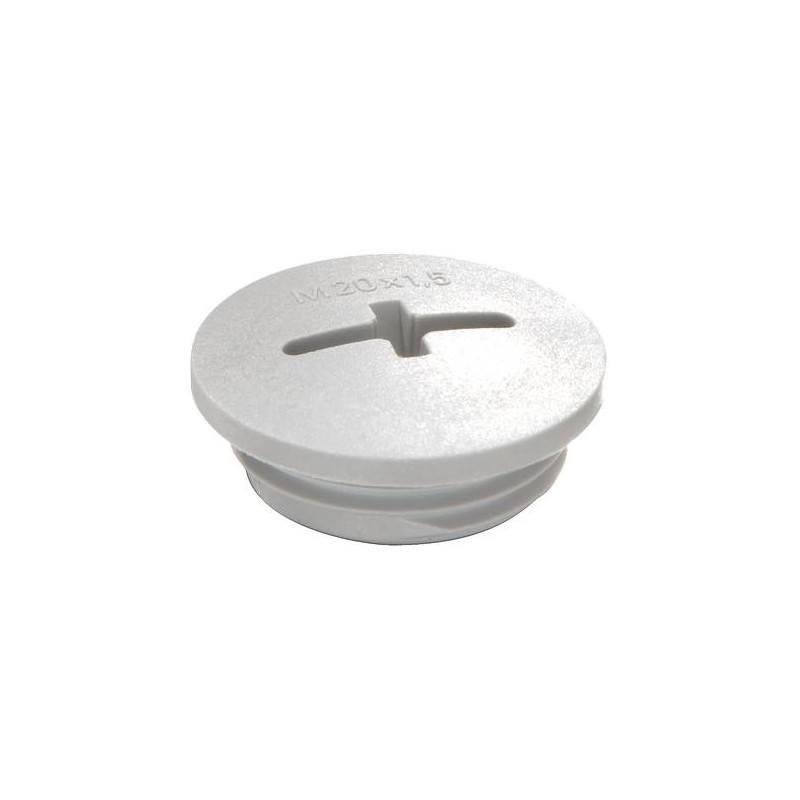

EVSF 20 10064668 WISKA Blind stopper "V0", light grey RAL 7035, PA IP56 thread M20
EVSF 20
10064668
WISKA
100
Blind stopper "V0", light grey RAL 7035, PA IP56 thread M20
Stop end flame-retardant, polyamide, RAL 7035, M20
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material | Polyamide UL94-V0 |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Glow wire test | 960 °C |
| Hazard level EN acc. 45545 | R22=HL3 / R23=HL3 / R24=HL3 |
| Protection class | IP56 |
| Advice | with sealing IP66/IP68 |
| Thread type | M |
| Ø Connection thread D | 20 |
| Lead | 1,5 |
| Length screw-in thread L | 6 mm |
| Total length TL | 9,5 mm |
| External diameter ED | 24 mm |
| Product Color | RAL 7035 |
| Order no. RAL 7035 | 10064668 |
| Type | EVSF 20 |
| Packing unit | 100 |
| ETIM-Classification | EC000032 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EVSF 20 10064668 EN_10064668.pdf | 201 Kbytes |
|
