EVPS-L 40/GL
10106594
WISKA
10

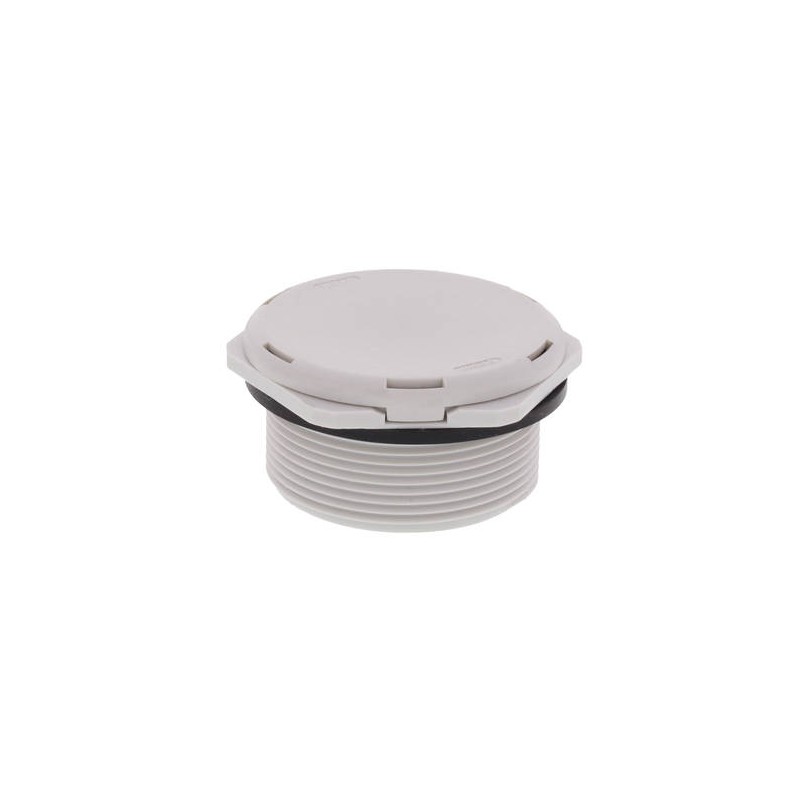

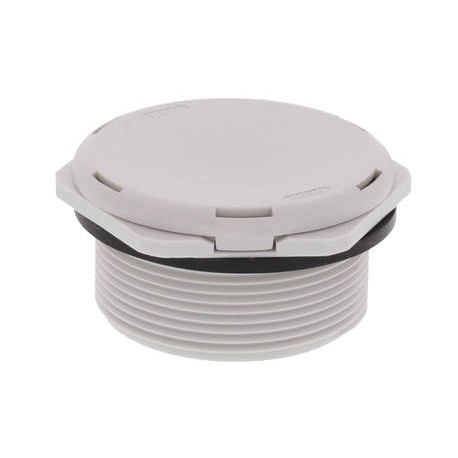

VentPLUG black compensating stopper RAL 7035, IP69K, long thread M40
Pressure compensation unit long, polyamide, RAL 7035, M40
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Material cable gland | Polyamide |
Material membrane | ePTFE |
Material sealing gasket | EPDM |
Airflow at 70mbar | 660 l/h |
Temp. range min | -40 °C |
Temp. range max | 100 °C |
Glow wire test | 750 °C |
Protection class | IP68 / IP69 |
Thread type | M |
Ø Connection thread D | 40 |
Lead | 1,5 |
Length screw-in thread L | 18 mm |
Key width SW | 46 mm |
Collar diameter (E) | 51 mm |
Tightening torque | 10 N m |
Total length TL | 24,4 mm |
Product Color | RAL 7035 |
Order no. RAL 7035 | 10106594 |
Type | EVPS-L 40 |
Packing unit | 10 |
ETIM-Classification | EC000441 |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE WISKA EN.pdf | 12 Mbytes | |
EVPS-L 40/GL 10106594 EN_10106594.pdf | 187 Kbytes |
