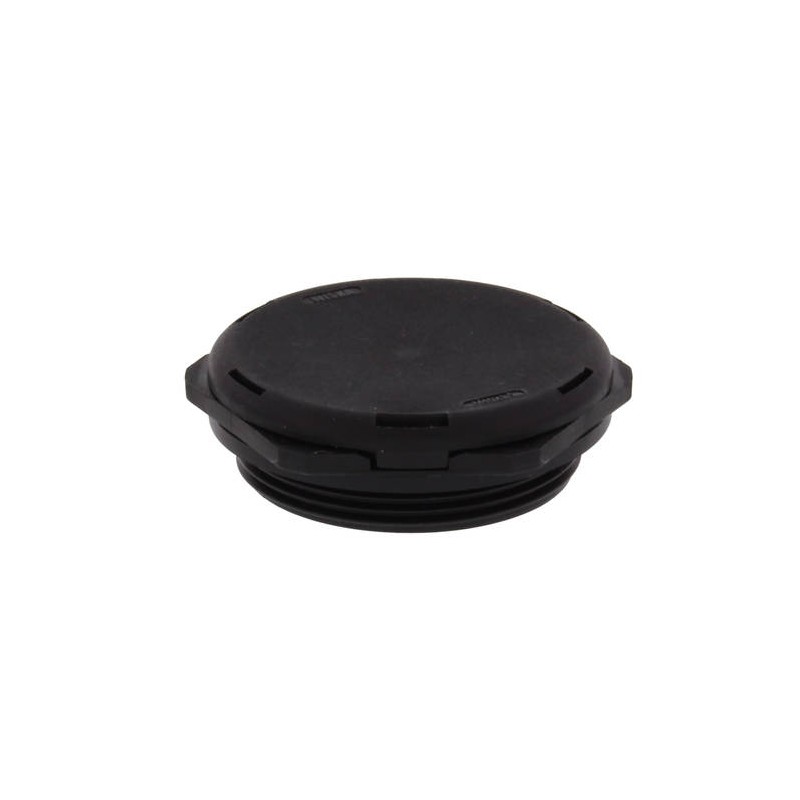

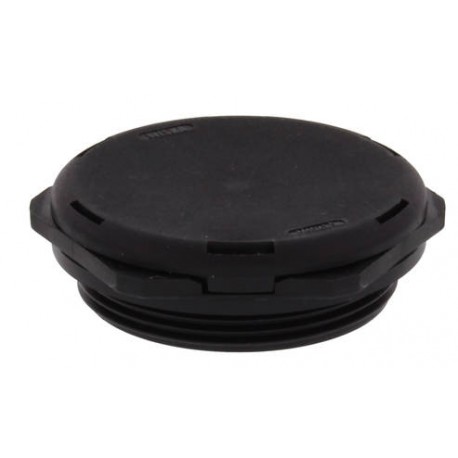

EVPS 40/B 10106597 WISKA VentPLUG black compensating stopper RAL 9005, IP69K, M40 thread
EVPS 40/B
10106597
WISKA
10
VentPLUG black compensating stopper RAL 9005, IP69K, M40 thread
Pressure compensation unit, polyamide, RAL 9005, M40
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Polyamide |
| Material membrane | ePTFE |
| Material sealing gasket | EPDM |
| Airflow at 70mbar | 660 l/h |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Glow wire test | 750 °C |
| Protection class | IP68 / IP69 |
| Thread type | M |
| Ø Connection thread D | 40 |
| Lead | 1,5 |
| Length screw-in thread L | 9 mm |
| Key width SW | 46 mm |
| Collar diameter (E) | 51 mm |
| Tightening torque | 10 N m |
| Total length TL | 15,4 mm |
| Product Color | RAL 9005 |
| Order no. RAL 9005 | 10106597 |
| Type | EVPS 40 |
| Packing unit | 10 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG WISKA CABLE ENTRIES AND PROTECTION EN.pdf | 8 Mbytes |
|
| PDF CATALOG WISKA JUCTION BOXES EN.pdf | 3 Mbytes |
|
| PDF CATALOG WISKA LIGHTING INSTALLATION AND MARITIME APP EN.pdf | 5 Mbytes |
|
| EVPS 40/B 10106597 EN_10106597.pdf | 178 Kbytes |
|
