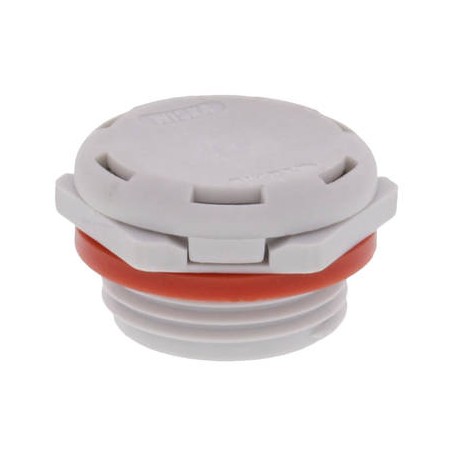

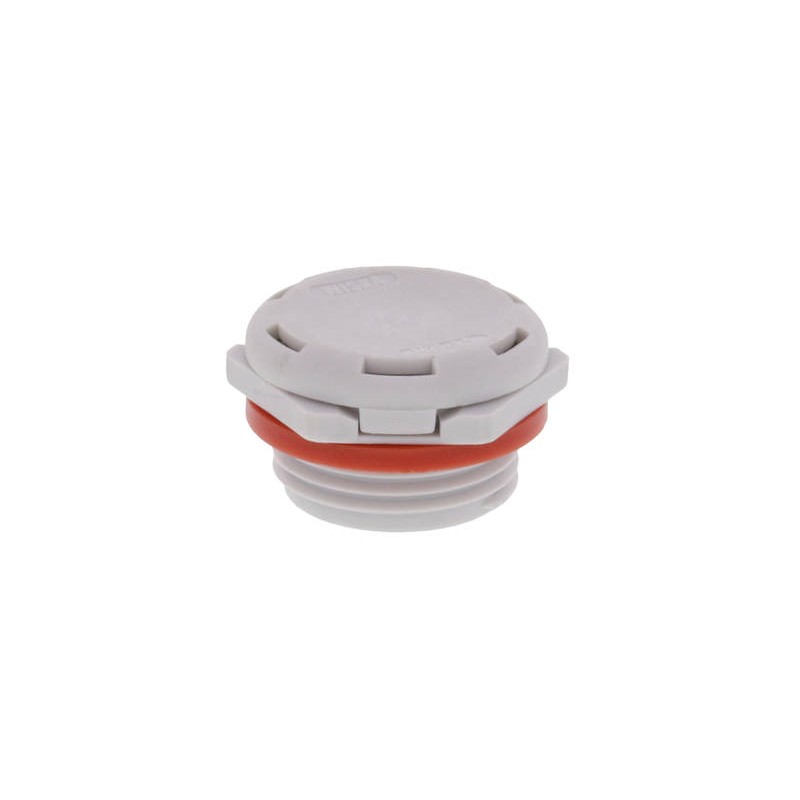

EVPS 20/GL HF 10106615 WISKA VentPLUG High Flow black compensating stopper RAL 7035, IP69K, M20 thread
EVPS 20/GL HF
10106615
WISKA
10
VentPLUG High Flow black compensating stopper RAL 7035, IP69K, M20 thread
Pressure compensation unit, polyamide, RAL 7035, M20
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Polyamide |
| Material membrane | ePTFE |
| Material sealing gasket | Silicone |
| Airflow at 70mbar | 280 l/h |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Glow wire test | 750 °C |
| Protection class | IP68 / IP69 |
| Thread type | M |
| Ø Connection thread D | 20 |
| Lead | 1,5 |
| Length screw-in thread L | 9 mm |
| Key width SW | 24 mm |
| Collar diameter (E) | 27 mm |
| Tightening torque | 2 N m |
| Total length TL | 15,4 mm |
| Product Color | RAL 7035 |
| Order no. RAL 7035 | 10106615 |
| Type | EVPS 20 HF |
| Packing unit | 10 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EVPS 20/GL HF 10106615 EN_10106615.pdf | 185 Kbytes |
|
