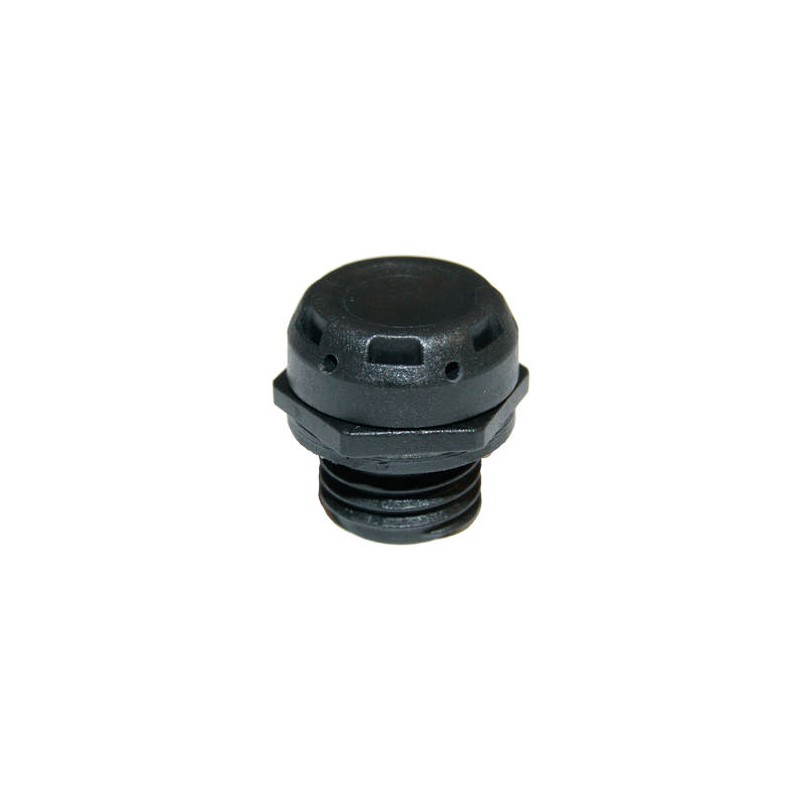

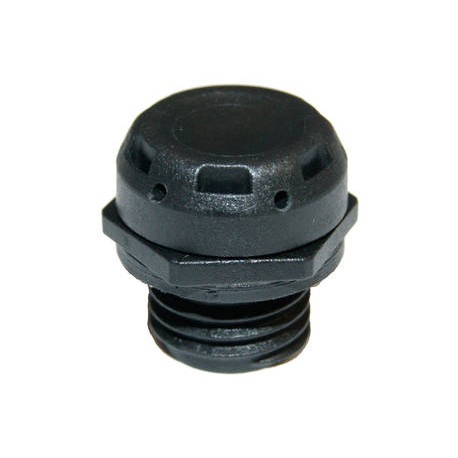

EVPS 12/B 10102370 WISKA VentPLUG black compensating cap RAL 9005, IP69K, M12 thread
EVPS 12/B
10102370
WISKA
10
VentPLUG black compensating cap RAL 9005, IP69K, M12 thread
Pressure compensation unit, polyamide, RAL 9005, M12
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Polyamide |
| Material membrane | ePTFE |
| Material sealing gasket | TPE |
| Airflow at 70mbar | 22 l/h |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP68 / IP69 |
| Thread type | M |
| Ø Connection thread D | 12 |
| Lead | 1,5 |
| Length screw-in thread L | 8 mm |
| Key width SW | 16 mm |
| Collar diameter (E) | 18 mm |
| Tightening torque | 1 N m |
| Total length TL | 17,4 mm |
| Product Color | RAL 9005 |
| Order no. RAL 9005 | 10102370 |
| Type | EVPS 12 |
| Packing unit | 10 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EVPS 12/B 10102370 EN_10102370.pdf | 260 Kbytes |
|
