ESVG 40/GL
10102471
WISKA
1
VentGLAND cable glands, light grey RAL 7035, IP69K range from 16 to 28mm, thread M40

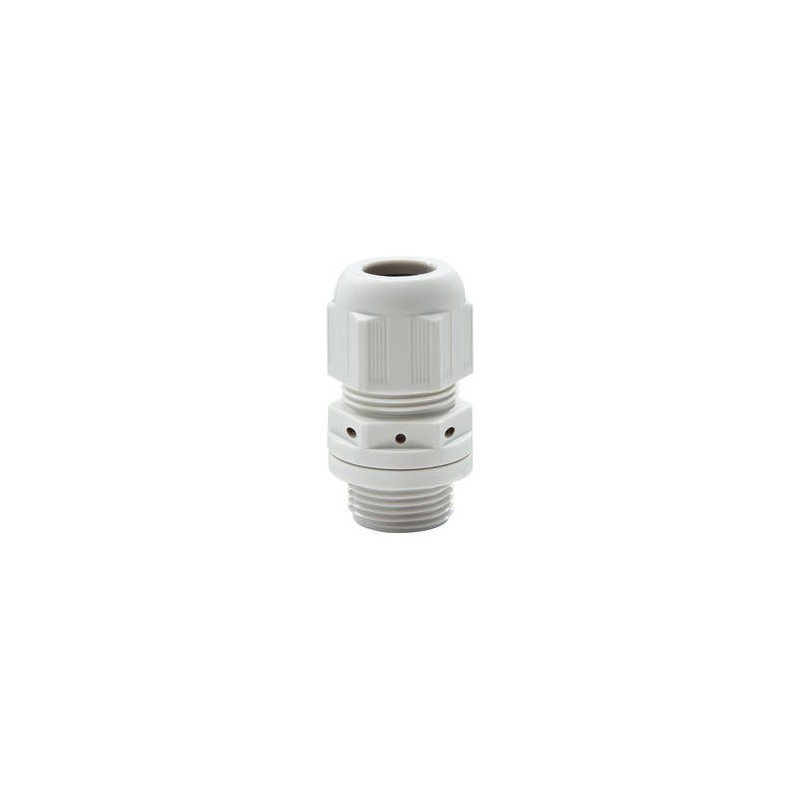

Pressure compensation cable gland, polyamide, RAL 7035, M40
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Material cable gland | Polyamide |
Material membrane | ePTFE |
Material sealing gasket | EPDM |
Airflow at 70mbar | 150 l/h |
Temp. range min | -40 °C |
Temp. range max | 100 °C |
Glow wire test | 750 °C |
Protection class | IP68 / IP69 |
Thread type | M |
Ø Connection thread D | 40 |
Lead | 1,5 |
Length screw-in thread L | 12 mm |
Ø cable diameter min | 16 mm |
Ø cable diameter max | 28 mm |
Ø cable diameter UL | 17,4 mm - 26,4 mm |
Key width SW | 46 mm |
Collar diameter (E) | 51 mm |
Install. torques fitting | 20 N m |
Install. torques cap nut | 20 N m |
Total length TL | 52 mm - 65 mm |
Equipment | Incl. connection thread gasket |
Product Color | RAL 7035 |
Order no. RAL 7035 | 10102471 |
Type | ESVG 40 |
Packing unit | 1 |
ETIM-Classification | EC000441 |
Title: | Size: | Type: |
---|---|---|
PDF CATALOG WISKA CABLE ENTRIES AND PROTECTION EN.pdf | 8 Mbytes | |
PDF CATALOG WISKA JUCTION BOXES EN.pdf | 3 Mbytes | |
PDF CATALOG WISKA LIGHTING INSTALLATION AND MARITIME APP EN.pdf | 5 Mbytes | |
ESVG 40/GL 10102471 EN_10102471.pdf | 268 Kbytes |
