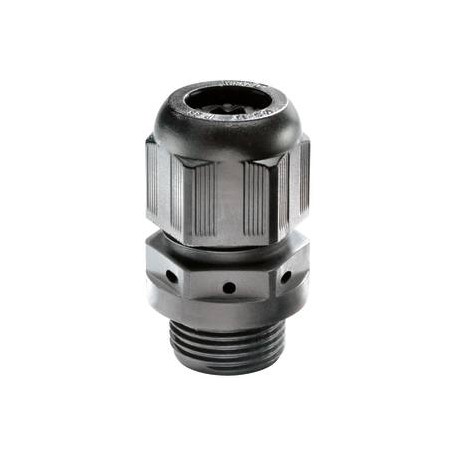

ESVG 32/B 10100802 WISKA VentGLAND cable glands, black RAL 9055, IP69K range from 13 to 21mm, thread M32
ESVG 32/B
10100802
WISKA
VentGLAND cable glands, black RAL 9055, IP69K range from 13 to 21mm, thread M32

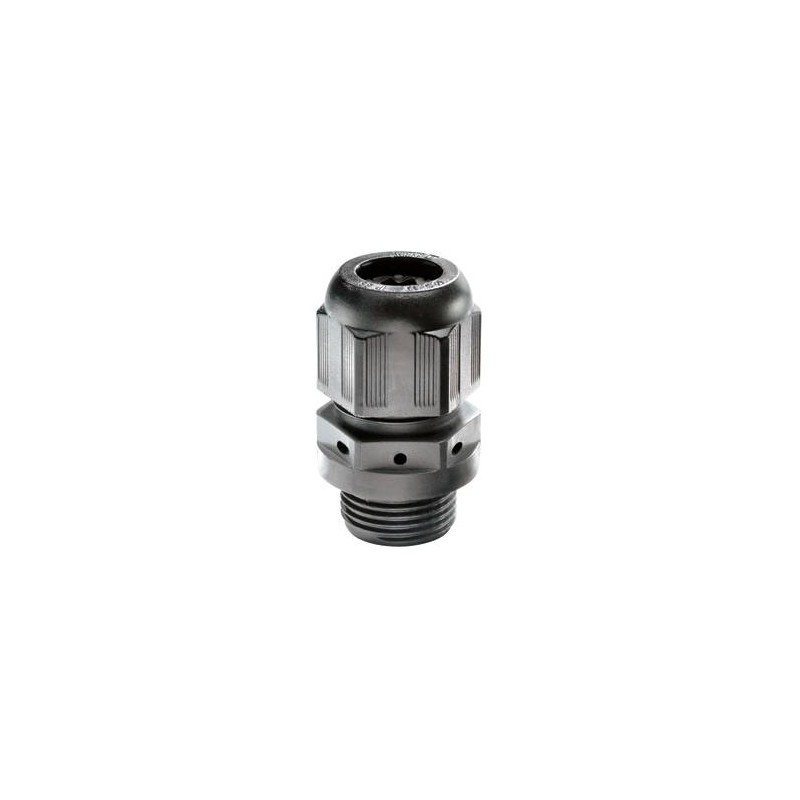

Pressure compensation cable gland, polyamide, RAL 9005, M32
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Polyamide |
| Material membrane | ePTFE |
| Material sealing gasket | EPDM |
| Airflow at 70mbar | 115 l/h |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Glow wire test | 750 °C |
| Protection class | IP68 / IP69 |
| Thread type | M |
| Ø Connection thread D | 32 |
| Lead | 1,5 |
| Length screw-in thread L | 12 mm |
| Ø cable diameter min | 13 mm |
| Ø cable diameter max | 21 mm |
| Ø cable diameter UL | 14,6 mm - 19,5 mm |
| Key width SW | 36 mm |
| Collar diameter (E) | 40 mm |
| Install. torques fitting | 15 N m |
| Install. torques cap nut | 4 N m |
| Total length TL | 49 mm - 58 mm |
| Equipment | Incl. connection thread gasket |
| Product Color | RAL 9005 |
| Order no. RAL 9005 | 10100802 |
| Type | ESVG 32 |
| Packing unit | 1 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| ESVG 32/B 10100802 EN_10100802.pdf | 362 Kbytes |
|
