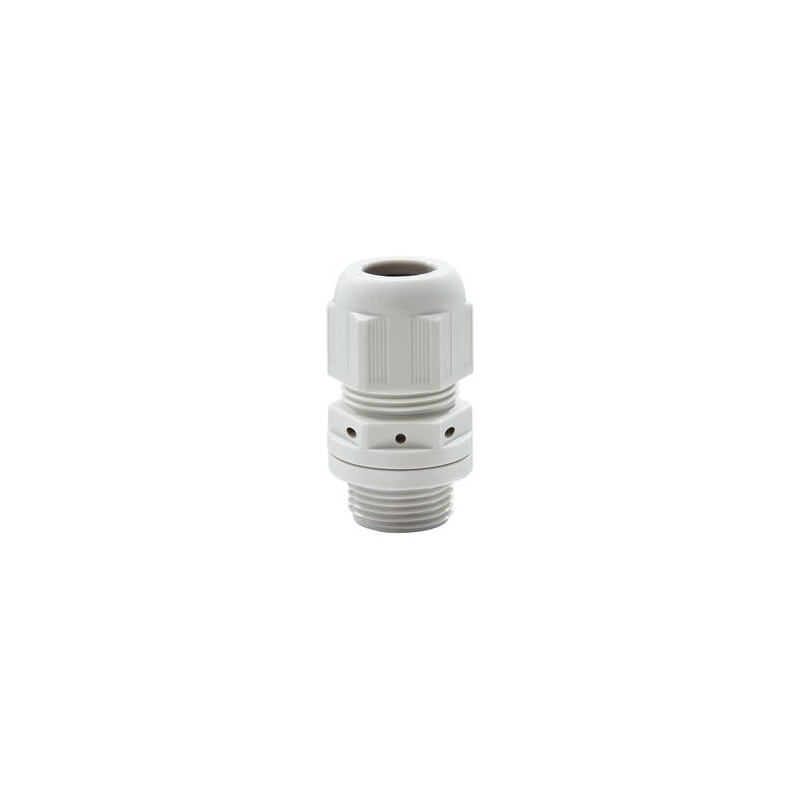

ESVG 20/GL 10060974 WISKA VentGLAND cable glands, light grey RAL 7035, IP69K range from 6 to 13mm, thread M20
ESVG 20/GL
10060974
WISKA
VentGLAND cable glands, light grey RAL 7035, IP69K range from 6 to 13mm, thread M20
Pressure compensation cable gland, polyamide, RAL 7035, M20
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Polyamide |
| Material membrane | ePTFE |
| Material sealing gasket | EPDM |
| Airflow at 70mbar | 42 l/h |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Glow wire test | 750 °C |
| Protection class | IP68 / IP69 |
| Thread type | M |
| Ø Connection thread D | 20 |
| Lead | 1,5 |
| Length screw-in thread L | 10 mm |
| Ø cable diameter min | 6 mm |
| Ø cable diameter max | 13 mm |
| Ø cable diameter UL | 7,5 mm - 11,3 mm |
| Key width SW | 24 mm |
| Collar diameter (E) | 27 mm |
| Install. torques fitting | 4 N m |
| Install. torques cap nut | 3 N m |
| Total length TL | 41 mm - 50 mm |
| Equipment | Incl. connection thread gasket |
| Product Color | RAL 7035 |
| Order no. RAL 7035 | 10060974 |
| Type | ESVG 20 |
| Packing unit | 1 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| ESVG 20/GL 10060974 EN_10060974.pdf | 247 Kbytes |
|
