View larger

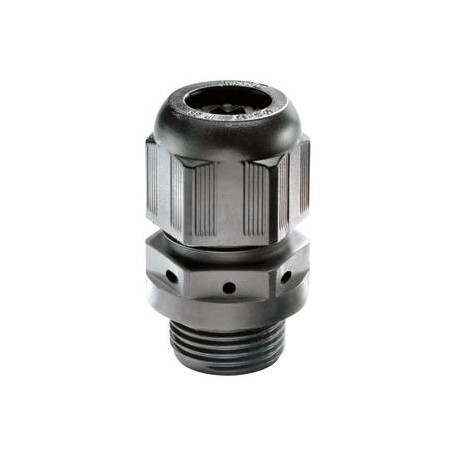

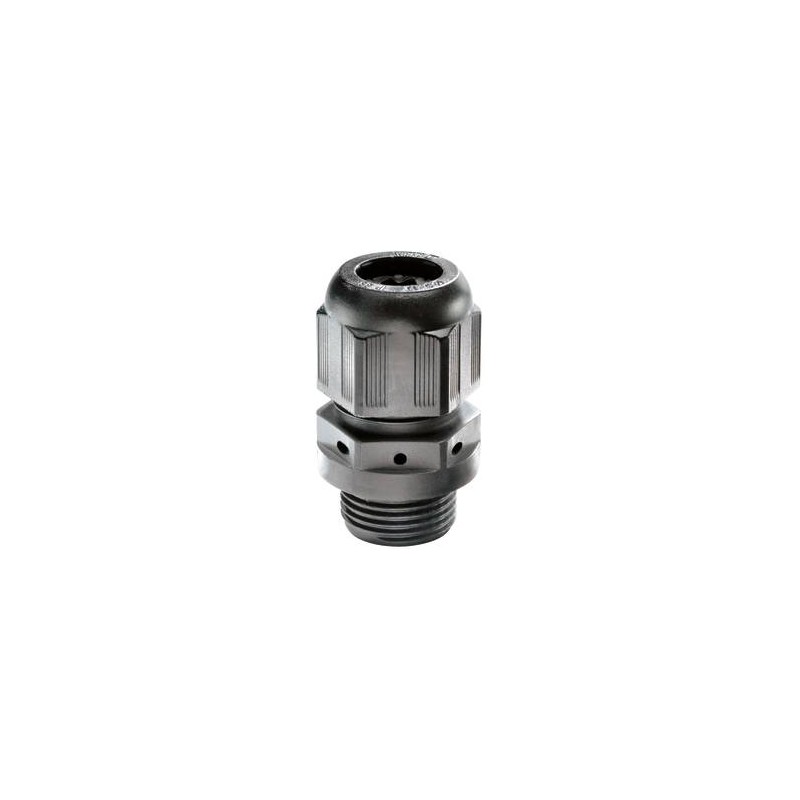

ESVG 16/B 10104413 WISKA VentGLAND cable glands, black RAL 9005, IP69K range from 4'5 to 10mm, thread M16
ESVG 16/B
10104413
WISKA
VentGLAND cable glands, black RAL 9005, IP69K range from 4'5 to 10mm, thread M16
Pressure compensation cable gland, polyamide, RAL 9005, M16
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Polyamide |
| Material membrane | ePTFE |
| Material sealing gasket | EPDM |
| Airflow at 70mbar | 52 l/h |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Glow wire test | 750 °C |
| Protection class | IP68 / IP69 |
| Thread type | M |
| Ø Connection thread D | 16 |
| Lead | 1,5 |
| Length screw-in thread L | 9 mm |
| Ø cable diameter min | 4,5 mm |
| Ø cable diameter max | 10 mm |
| Key width SW | 20 mm |
| Collar diameter (E) | 22 mm |
| Install. torques fitting | 3,5 N m |
| Install. torques cap nut | 1,5 N m |
| Total length TL | 37 mm - 42 mm |
| Equipment | Incl. connection thread gasket |
| Product Color | RAL 9005 |
| Order no. RAL 9005 | 10104413 |
| Type | ESVG 16 |
| Packing unit | 1 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| ESVG 16/B 10104413 EN_10104413.pdf | 361 Kbytes |
|
