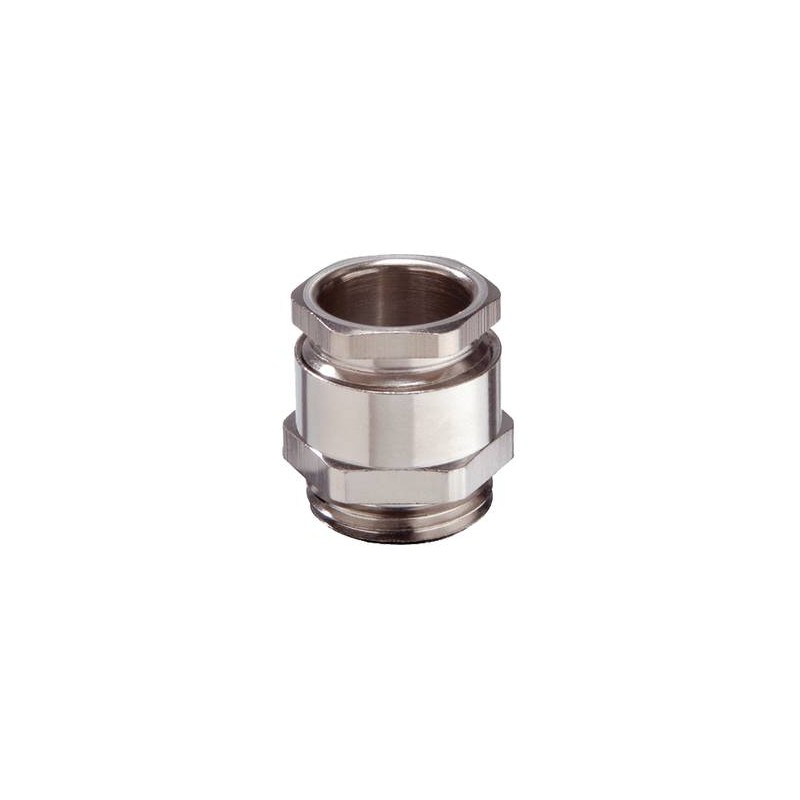

ESMKV 63 10062877 WISKA Metal hexagonal cable glands, IP54, range from 40 to 51mm, thread M63
ESMKV 63
10062877
WISKA
50
Metal hexagonal cable glands, IP54, range from 40 to 51mm, thread M63
Cable gland hexagonal, brass nickel-plated, M63, with short thread
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material sealing gasket | Soft rubber |
| Temp. range min | -30 °C |
| Temp. range max | 80 °C |
| Protection class | IP54 |
| Thread type | M |
| Ø Connection thread D | 63 |
| Lead | 1,5 |
| Length screw-in thread L | 10 mm |
| Ø cable diameter min | 40 mm |
| Ø cable diameter max | 51 mm |
| Key width SW1 | 63 mm |
| Key width SW2 | 66 mm |
| Collar diameter E1 | 71 mm |
| Collar diameter E2 | 70 mm |
| Total length TL | 46 mm |
| Impact category | 6 |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10062877 |
| Type | ESMKV 63 |
| Packing unit | 5 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| ESMKV 63 10062877 EN_10062877.pdf | 210 Kbytes |
|
