ESMKV 50
10062876
WISKA
5

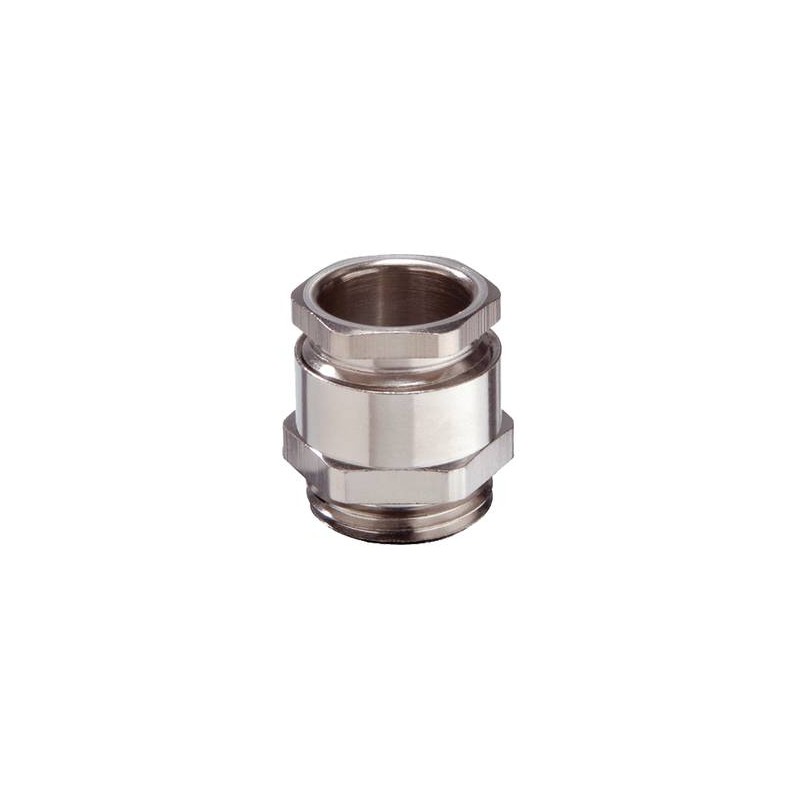

Metal hexagonal cable glands, IP54, range from 31 to 42mm, thread M50
Cable gland hexagonal, brass nickel-plated, M50, with short thread
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Material cable gland | Brass nickel-plated |
Material sealing gasket | Soft rubber |
Temp. range min | -30 °C |
Temp. range max | 80 °C |
Protection class | IP54 |
Thread type | M |
Ø Connection thread D | 50 |
Lead | 1,5 |
Length screw-in thread L | 9 mm |
Ø cable diameter min | 31 mm |
Ø cable diameter max | 42 mm |
Key width SW1 | 50 mm |
Key width SW2 | 52 mm |
Collar diameter E1 | 54 mm |
Collar diameter E2 | 56 mm |
Total length TL | 48 mm |
Impact category | 6 |
Surface | Nickel-plated |
Order no. nickel-plated | 10062876 |
Type | ESMKV 50 |
Packing unit | 5 |
ETIM-Classification | EC000441 |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE WISKA EN.pdf | 12 Mbytes | |
ESMKV 50 10062876 EN_10062876.pdf | 210 Kbytes |
