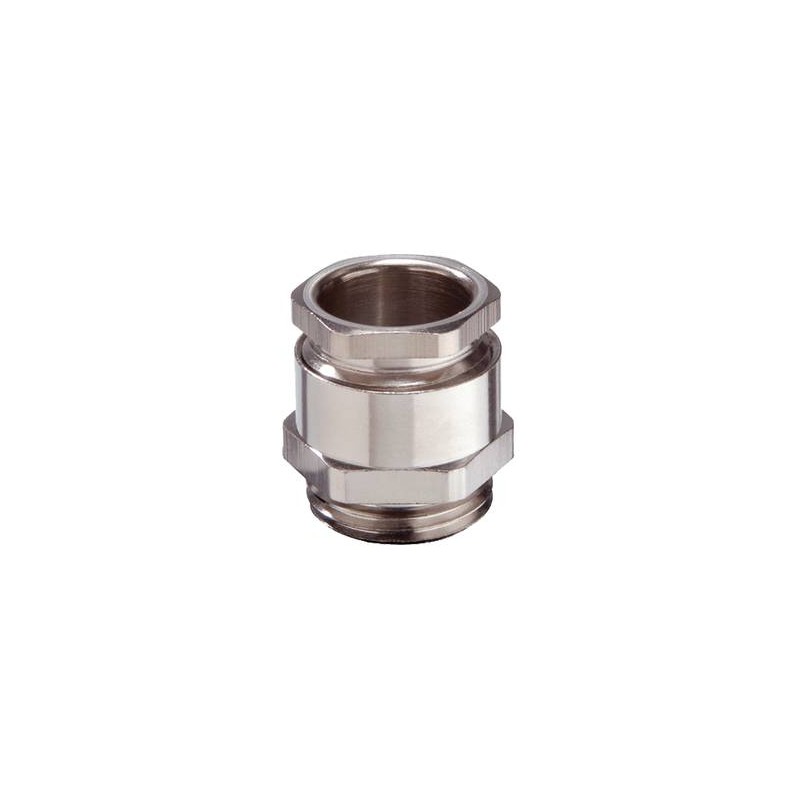

ESMKV 40 10062875 WISKA Metal hexagonal cable glands, IP54, range from 22 to 33mm, thread M40
ESMKV 40
10062875
WISKA
20
Metal hexagonal cable glands, IP54, range from 22 to 33mm, thread M40
Cable gland hexagonal, brass nickel-plated, M40, with short thread
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material sealing gasket | Soft rubber |
| Temp. range min | -30 °C |
| Temp. range max | 80 °C |
| Protection class | IP54 |
| Thread type | M |
| Ø Connection thread D | 40 |
| Lead | 1,5 |
| Length screw-in thread L | 8 mm |
| Ø cable diameter min | 22 mm |
| Ø cable diameter max | 33 mm |
| Key width SW1 | 40 mm |
| Key width SW2 | 42 mm |
| Collar diameter E1 | 43 mm |
| Collar diameter E2 | 47 mm |
| Total length TL | 38 mm |
| Impact category | 6 |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10062875 |
| Type | ESMKV 40 |
| Packing unit | 20 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| ESMKV 40 10062875 EN_10062875.pdf | 210 Kbytes |
|
