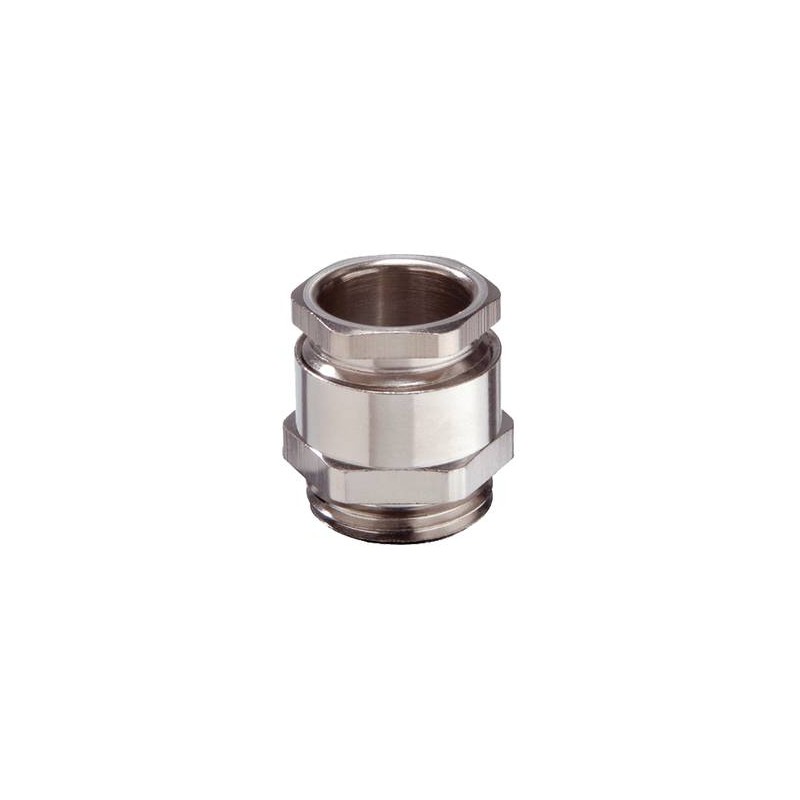

ESMKV 32 10062874 WISKA Metal hexagonal cable glands, IP54, range from 15 to 25mm, thread M32
ESMKV 32
10062874
WISKA
25
Metal hexagonal cable glands, IP54, range from 15 to 25mm, thread M32
Cable gland hexagonal, brass nickel-plated, M32, with short thread
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material sealing gasket | Soft rubber |
| Temp. range min | -30 °C |
| Temp. range max | 80 °C |
| Protection class | IP54 |
| Thread type | M |
| Ø Connection thread D | 32 |
| Lead | 1,5 |
| Length screw-in thread L | 8 mm |
| Ø cable diameter min | 15 mm |
| Ø cable diameter max | 26 mm |
| Key width SW1 | 32 mm |
| Key width SW2 | 34 mm |
| Collar diameter E1 | 35 mm |
| Collar diameter E2 | 38 mm |
| Total length TL | 32 mm |
| Impact category | 6 |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10062874 |
| Type | ESMKV 32 |
| Packing unit | 25 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| ESMKV 32 10062874 EN_10062874.pdf | 210 Kbytes |
|
