View larger

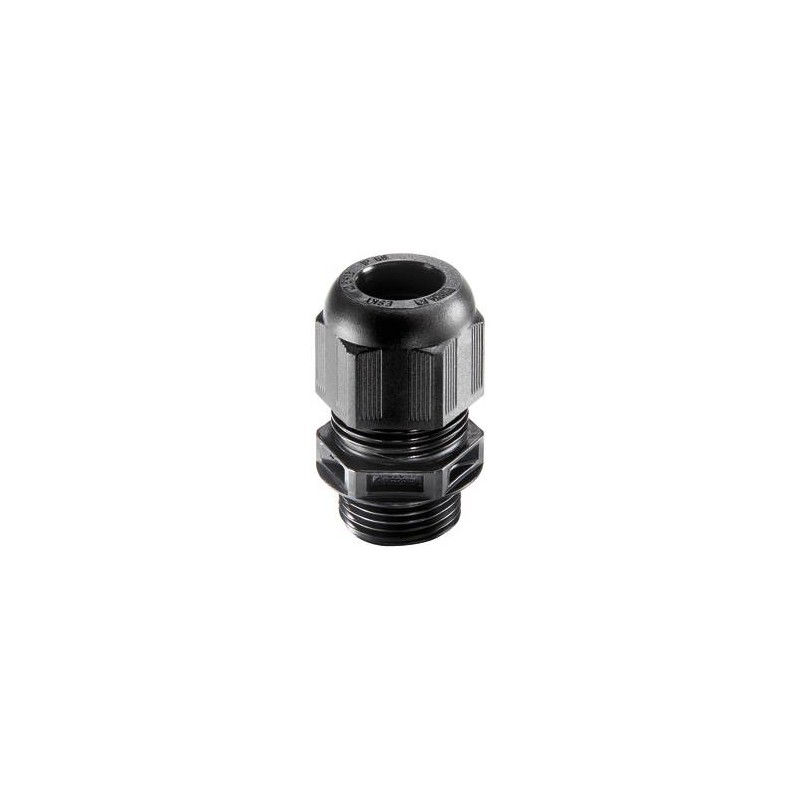

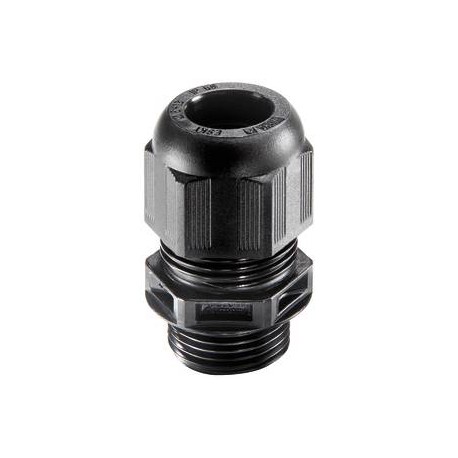

ESKV 25 LT/B 10061518 WISKA PA cable glands, black RAL 9005 IP68, -60oC range from 9 to 17mm, thread M25
ESKV 25 LT/B
10061518
WISKA
50
PA cable glands, black RAL 9005 - IP68, -60oC range from 9 to 17mm, thread M25
Cable gland LowTemp, polyamide, M25, RAL 9005 with short thread
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Polyamide |
| Material sealing gasket | Silicone |
| Protection class | IP69, IP68 (5 bar 30 min) |
| Temp. range min | -60 °C |
| Temp. range max | 100 °C |
| Glow wire test | 750 °C |
| Thread type | M |
| Ø Connection thread D | 25 |
| Lead | 1,5 |
| Length screw-in thread L | 10 mm |
| Ø cable diameter min | 9 mm |
| Ø cable diameter max | 17 mm |
| Key width SW | 29 mm |
| Collar diameter (E) | 32 mm |
| Total length TL | 38 mm - 47 mm |
| Type of cable anchorage | A |
| Install. torques fitting | 10 N m |
| Install. torques cap nut | 4 N m |
| Impact category | 4 |
| Product Color | RAL 9005 |
| Type | ESKV 25 LT |
| Order no. RAL 9005 | 10061518 |
| Packing unit | 50 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| ESKV 25 LT/B 10061518 EN_10061518.pdf | 412 Kbytes |
|
