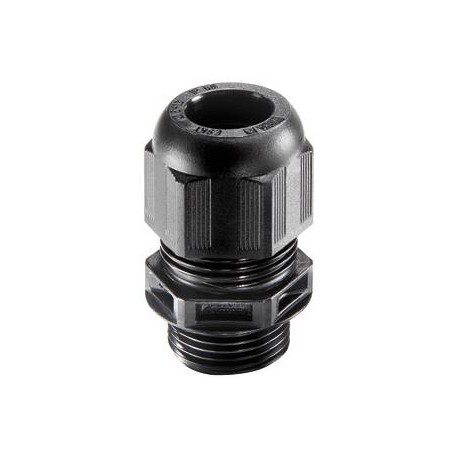

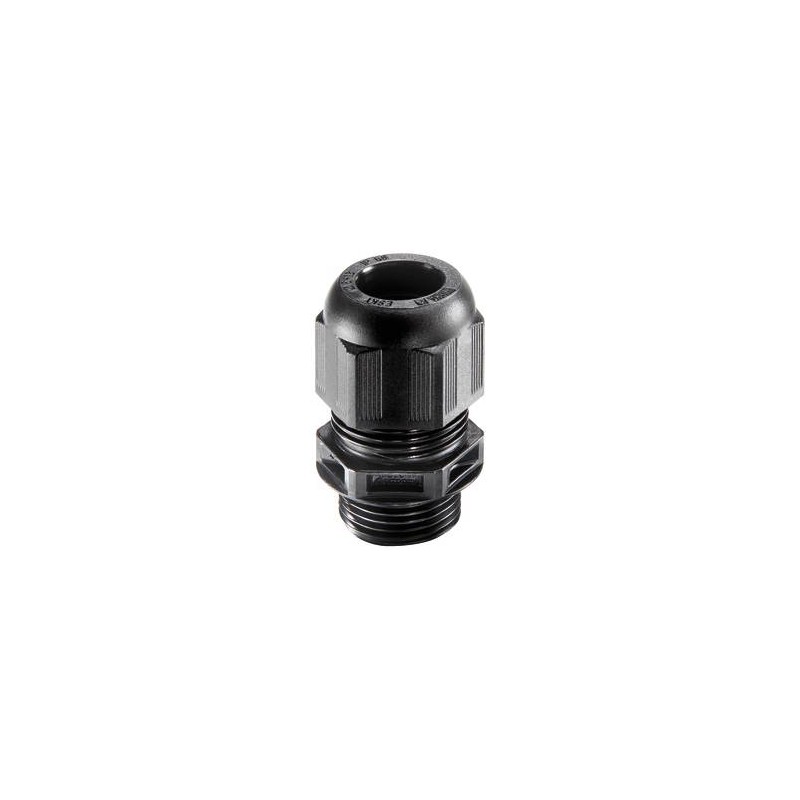

ESKV 16/B 10066121 WISKA PA cable glands, black RAL 9005 IP68, range from 4.5 to 10mm, thread M16
ESKV 16/B
10066121
WISKA
50
PA cable glands, black RAL 9005 - IP68, range from 4.5 to 10mm, thread M16
Cable gland, polyamide, M16, RAL 9005 with short thread
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
More info
▲Features
| Material cable gland | Polyamide |
| Material sealing gasket | EPDM |
| Protection class | IP68 (5 bar 30 min), IP69 |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Glow wire test | 750 °C |
| Thread type | M |
| Ø Connection thread D | 16 |
| Lead | 1,5 |
| Length screw-in thread L | 9 mm |
| Ø cable diameter min | 4,5 mm |
| Ø cable diameter max | 10 mm |
| Ø cable diameter UL | 6 mm - 8,6 mm |
| Key width SW | 20 mm |
| Collar diameter (E) | 22 mm |
| Total length TL | 31 mm - 37 mm |
| Type of cable anchorage | A |
| Install. torques fitting | 3,5 N m |
| Install. torques cap nut | 1,5 N m |
| Impact category | 3 |
| Product Color | RAL 9005 |
| Type | ESKV 16 |
| Order no. RAL 9005 | 10066121 |
| Packing unit | 50 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG WISKA CABLE ENTRIES AND PROTECTION EN.pdf | 8 Mbytes |
|
| PDF CATALOG WISKA JUCTION BOXES EN.pdf | 3 Mbytes |
|
| PDF CATALOG WISKA LIGHTING INSTALLATION AND MARITIME APP EN.pdf | 5 Mbytes |
|
| ESKV 16/B 10066121 EN_10066121.pdf | 428 Kbytes |
|
