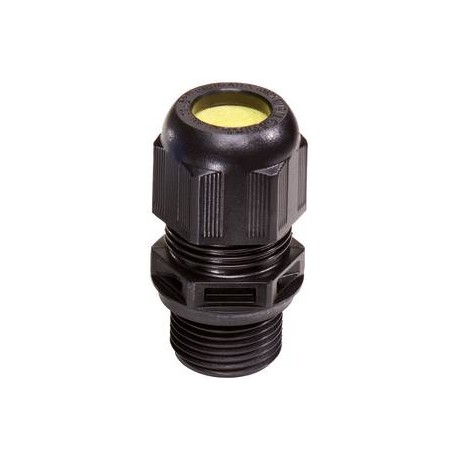

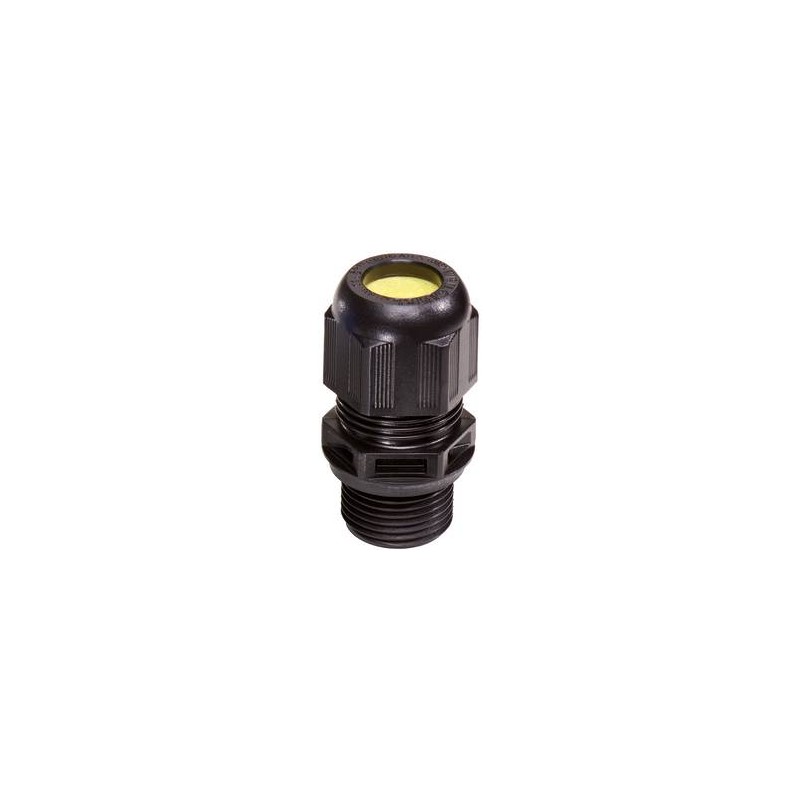

ESKE/1-L-e 50 10103385 WISKA BLACK PA cable glands "ATEX" IP68, increased security, range from 23 to 35mm, l..
ESKE/1-L-e 50
10103385
WISKA
50
BLACK PA cable glands "ATEX" IP68, increased security, range from 23 to 35mm, long thread M50
Ex-cable gland, polyamide with long thread, RAL 9005, M50
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 75 °C |
| Protection class | IP66 / IP68 (5 bar 30 min) |
| Type of protection | Ex eb, Ex tb |
| Ex-Certificate | IECEx, ATEX |
| Glow wire test | 750 °C |
| Thread type | M |
| Ø Connection thread D | 50 |
| Lead | 1,5 |
| Length screw-in thread L | 18 mm |
| Ø cable diameter min | 23 mm |
| Ø cable diameter max | 35 mm |
| Key width SW | 55 mm |
| Collar diameter (E) | 61 mm |
| Total length TL | 63 mm - 76 mm |
| Install. torques fitting | 13 N m |
| Install. torques cap nut | 12 N m |
| Equipment | Incl. connection thread gasket |
| Product Color | RAL 9005 |
| Order no. RAL 9005 | 10103385 |
| Type | ESKE/1-L-e 50 |
| Packing unit | 4 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| ESKE/1-L-e 50 10103385 EN_10103385.pdf | 429 Kbytes |
|
