WISKAESKE/1-e 63 LT 10103436 WISKA Black PA cable glands "ATEX" IP68, increased security, -60oC, range from 34 to..

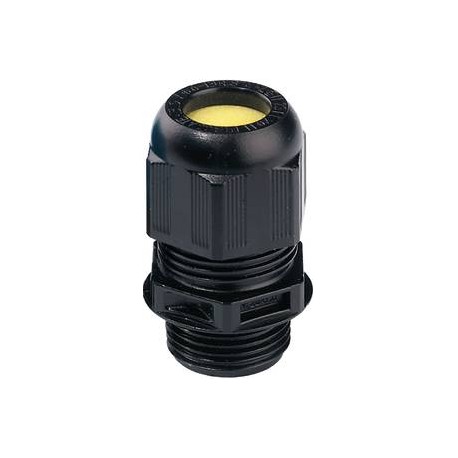

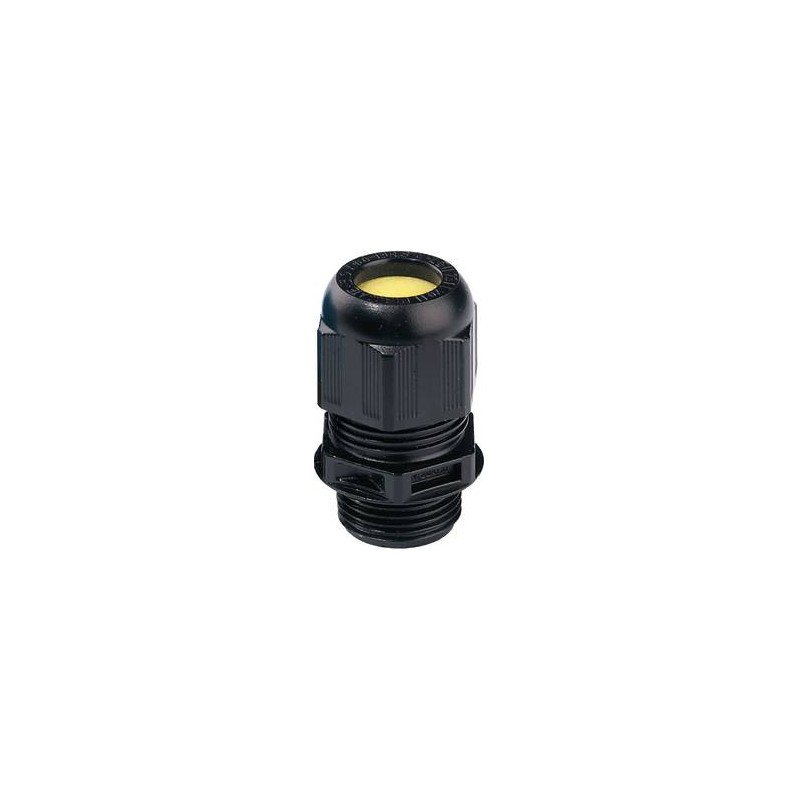

WISKA ESKE/1-e 63 LT 10103436 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

ESKE/1-e 63 LT 10103436 WISKA Black PA cable glands "ATEX" IP68, increased security, -60oC, range from 34 to..

Reference: ESKE/1-e 63 LT

Code: 10103436

Manufacturer: WISKA

Description:

Black PA cable glands "ATEX" IP68, increased security, -60oC, range from 34 to 48mm, thread M63
Ex-cable gland LowTemp, polyamide with short thread

Categories:

  • WISKA

Brand new product in its original packaging covered by the warranties and certifications provided by WISKA

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 63,80 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3-4 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

LogoLogoLogoLogoLogoLogoLogoLogo
Material cable glandPolyamide
Material sealing gasketSilicone
Temp. range min-60 °C
Temp. range max75 °C
Protection classIP66 / IP68 (5 bar 30 min)
Type of protectionEx eb, Ex tb
Ex-CertificateIECEx, ATEX
Glow wire test750 °C
Thread typeM
Ø Connection thread D63
Lead1,5
Length screw-in thread L15 mm
Ø cable diameter min34 mm
Ø cable diameter max48 mm
Key width SW68 mm
Collar diameter (E)75 mm
Total length TL64 mm - 78 mm
Install. torques fitting17 N m
Install. torques cap nut16 N m
EquipmentIncl. connection thread gasket
Product ColorRAL 9005
Order no. RAL 900510103436
TypeESKE/1-e 63 LT
Packing unit1
ETIM-ClassificationEC000441

DATASHEET - PDF

Title
Size
Type
ESKE/1-e 63 LT 10103436 EN_10103436.pdf
338 Kbytes
PDF CATALOGUE WISKA EN
16 Mbytes
