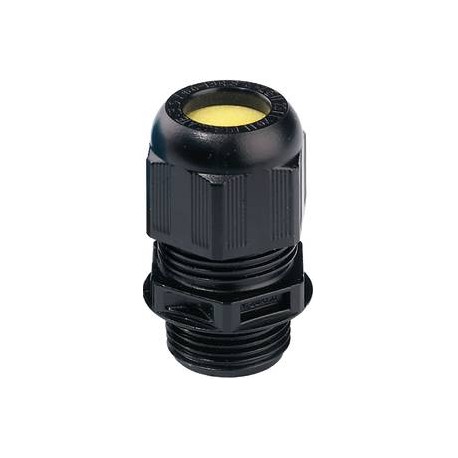

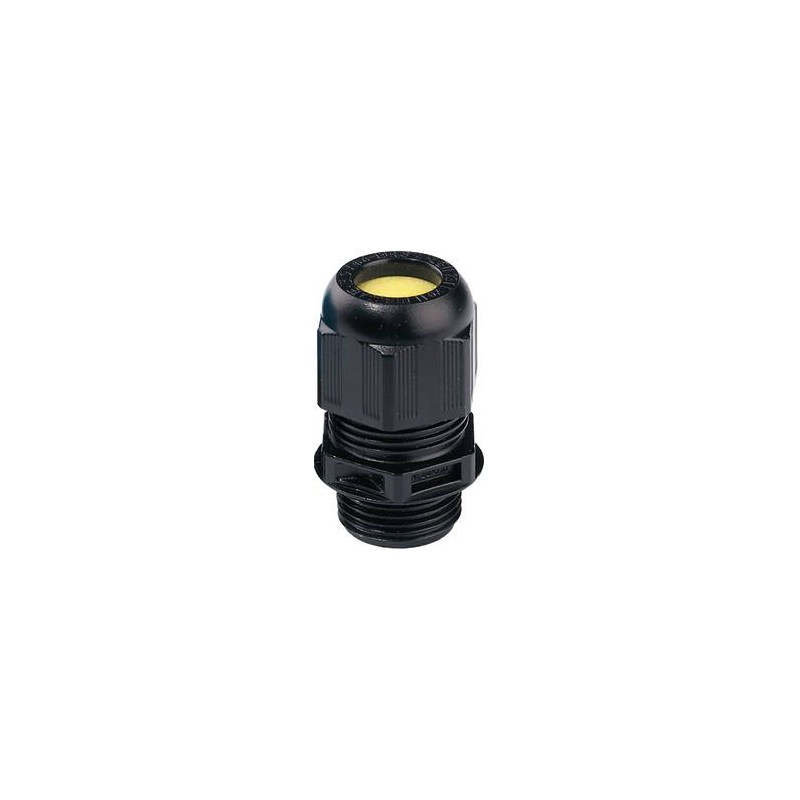

ESKE/1-e 63 10103370 WISKA BLACK PA cable glands "ATEX" IP68, increased security, range from 34 to 48mm, thr..
ESKE/1-e 63
10103370
WISKA
BLACK PA cable glands "ATEX" IP68, increased security, range from 34 to 48mm, thread M63
Ex-cable gland, polyamide with short thread, RAL 9005, M63
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 75 °C |
| Protection class | IP66 / IP68 (5 bar 30 min) |
| Type of protection | Ex eb, Ex tb |
| Ex-Certificate | IECEx, ATEX |
| Glow wire test | 750 °C |
| Thread type | M |
| Ø Connection thread D | 63 |
| Lead | 1,5 |
| Length screw-in thread L | 15 mm |
| Ø cable diameter min | 34 mm |
| Ø cable diameter max | 48 mm |
| Key width SW | 68 mm |
| Collar diameter (E) | 75 mm |
| Total length TL | 64 mm - 78 mm |
| Install. torques fitting | 17 N m |
| Install. torques cap nut | 16 N m |
| Equipment | Incl. connection thread gasket |
| Product Color | RAL 9005 |
| Order no. RAL 9005 | 10103370 |
| Type | ESKE/1-e 63 |
| Packing unit | 1 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| ESKE/1-e 63 10103370 EN_10103370.pdf | 339 Kbytes |
|
