WISKAESKE/1-e 25 LT 10103432 WISKA BLACK PA cable glands "ATEX" IP68, increased security, -60oC, range from 10 to..

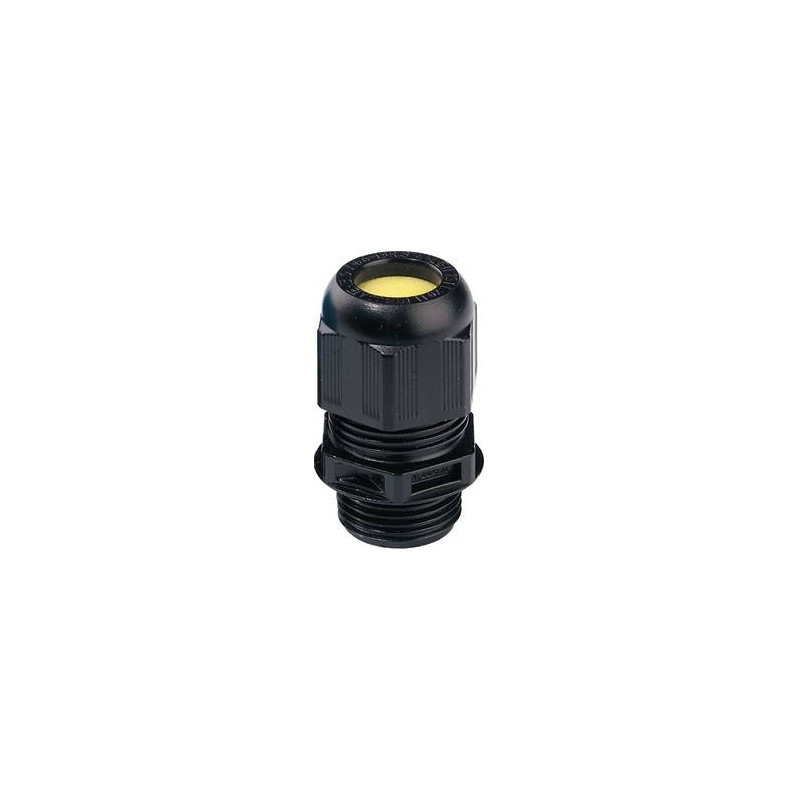

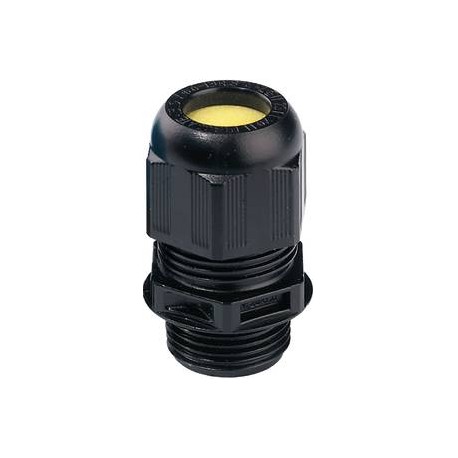

WISKA ESKE/1-e 25 LT 10103432 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

ESKE/1-e 25 LT 10103432 WISKA BLACK PA cable glands "ATEX" IP68, increased security, -60oC, range from 10 to..

Reference: ESKE/1-e 25 LT

Code: 10103432

Manufacturer: WISKA

Description:

BLACK PA cable glands "ATEX" IP68, increased security, -60oC, range from 10 to 17mm, thread M25
Ex-cable gland LowTemp, polyamide with short thread

Categories:

  • WISKA

Brand new product in its original packaging covered by the warranties and certifications provided by WISKA

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 443,94 €

Unit Price: 8,879 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3-4 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

LogoLogoLogoLogoLogoLogoLogoLogo
Material cable glandPolyamide
Material sealing gasketSilicone
Temp. range min-60 °C
Temp. range max75 °C
Protection classIP66 / IP68 (5 bar 30 min)
Type of protectionEx eb, Ex tb
Ex-CertificateIECEx, ATEX
Glow wire test750 °C
Thread typeM
Ø Connection thread D25
Lead1,5
Length screw-in thread L10 mm
Ø cable diameter min10 mm
Ø cable diameter max17 mm
Key width SW29 mm
Collar diameter (E)32 mm
Total length TL38 mm - 47 mm
Install. torques fitting3 N m
Install. torques cap nut2 N m
EquipmentIncl. connection thread gasket
Product ColorRAL 9005
Order no. RAL 900510103432
TypeESKE/1-e 25 LT
Packing unit50
ETIM-ClassificationEC000441
