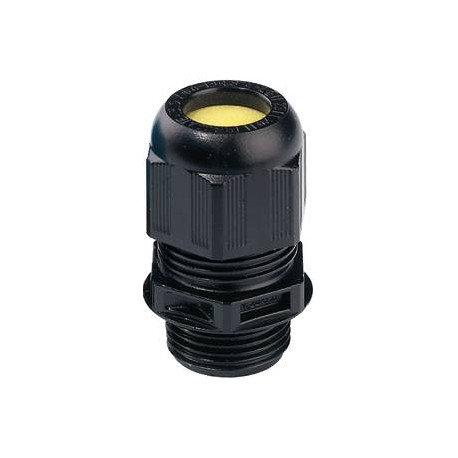

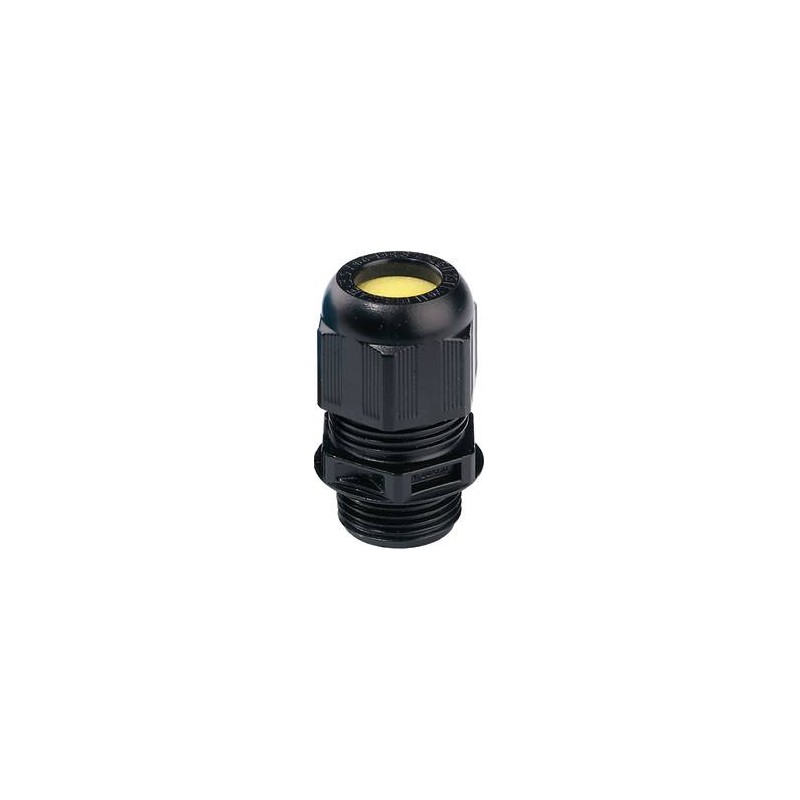

ESKE/1-e 12 LT 10103429 WISKA BLACK PA cable glands "ATEX" IP68, increased security, -60oC, range from 3 to ..
ESKE/1-e 12 LT
10103429
WISKA
50
BLACK PA cable glands "ATEX" IP68, increased security, -60oC, range from 3 to 6mm, thread M12
Ex-cable gland LowTemp, polyamide with short thread
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Polyamide |
| Material sealing gasket | Silicone |
| Temp. range min | -60 °C |
| Temp. range max | 75 °C |
| Protection class | IP66 / IP68 (5 bar 30 min) |
| Type of protection | Ex eb, Ex tb |
| Ex-Certificate | ATEX, IECEx |
| Glow wire test | 750 °C |
| Thread type | M |
| Ø Connection thread D | 12 |
| Lead | 1,5 |
| Length screw-in thread L | 9 mm |
| Ø cable diameter min | 3 mm |
| Ø cable diameter max | 6 mm |
| Key width SW | 16 mm |
| Collar diameter (E) | 18 mm |
| Total length TL | 29 mm - 34 mm |
| Install. torques fitting | 2 N m |
| Install. torques cap nut | 2 N m |
| Equipment | Incl. connection thread gasket |
| Product Color | RAL 9005 |
| Order no. RAL 9005 | 10103429 |
| Type | ESKE/1-e 12 LT |
| Packing unit | 50 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| ESKE/1-e 12 LT 10103429 EN_10103429.pdf | 339 Kbytes |
|
