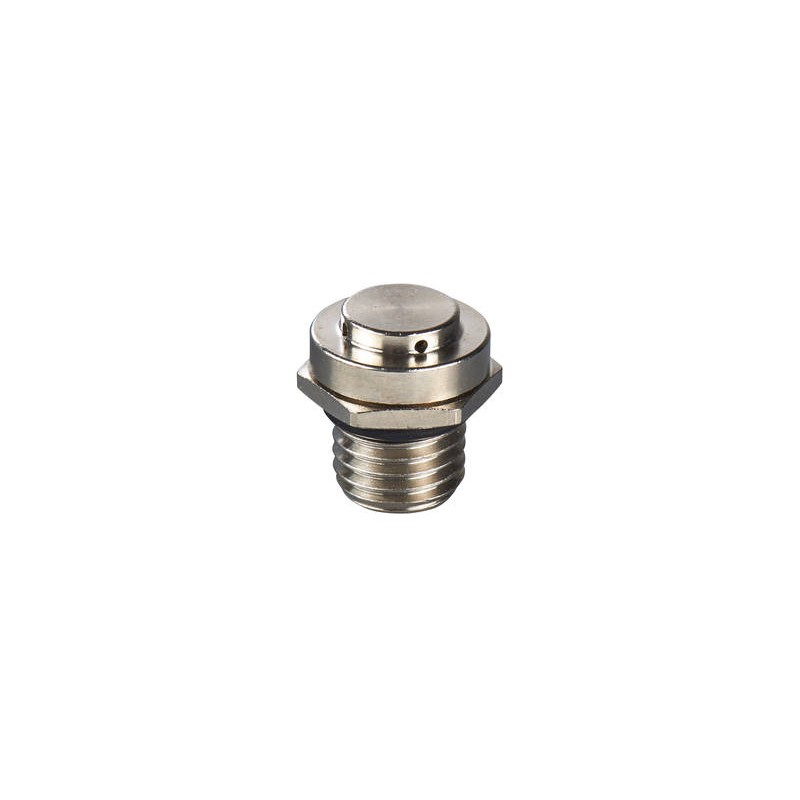

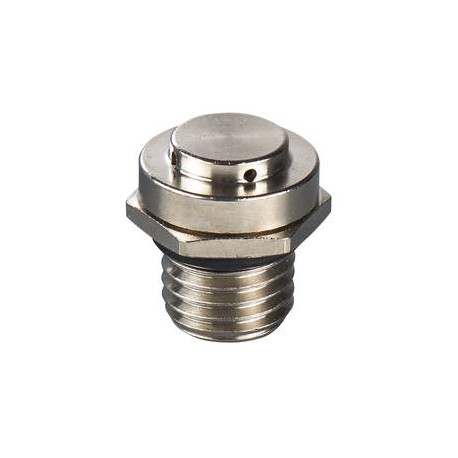

EMVPS 12 10103265 WISKA VentPLUG metal compensating cap, IP69K, M12 thread
EMVPS 12
10103265
WISKA
10
VentPLUG metal compensating cap, IP69K, M12 thread
Pressure compensation plug, brass nickel-plated, M12
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material sealing gasket | EPDM |
| Material membrane | ePTFE |
| Airflow at 70mbar | 22 l/h |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP68 / IP69 |
| Thread type | M |
| Ø Connection thread D | 12 |
| Lead | 1,5 |
| Length screw-in thread L | 10 mm |
| Key width SW | 16 mm |
| Collar diameter (E) | 18 mm |
| Total length TL | 17,5 mm |
| Tightening torque | 2 N m |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10103265 |
| Type | EMVPS 12 |
| Packing unit | 10 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EMVPS 12 10103265 EN_10103265.pdf | 248 Kbytes |
|
