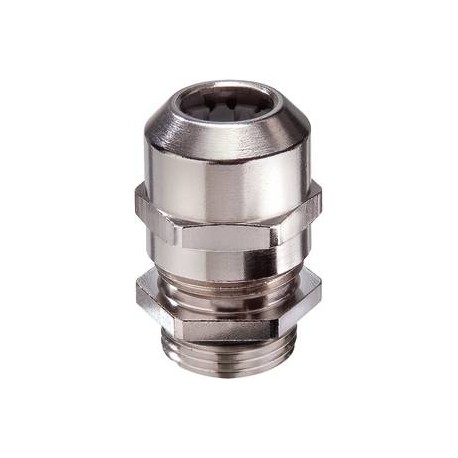

EMSKV 75 10100865 WISKA Metal cable glands, IP68, range from 34 to 48mm, thread M75
EMSKV 75
10100865
WISKA
Metal cable glands, IP68, range from 34 to 48mm, thread M75
Cable gland, brass nickel-plated, M75, with short thread
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material clamping cage | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP68 (5 bar 30 min), IP69 |
| Thread type | M |
| Ø Connection thread D | 75 |
| Lead | 1,5 |
| Length screw-in thread L | 12 mm |
| Ø cable diameter min | 48 mm |
| Ø cable diameter max | 62 mm |
| Key width SW | 82 mm |
| Collar diameter (E) | 90 mm |
| Total length TL | 67 mm - 81 mm |
| Type of cable anchorage | A |
| Install. torques fitting | 40 N m |
| Install. torques cap nut | 40 N m |
| Impact category | 6 |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10100865 |
| Packing unit | 1 |
| Type | EMSKV 75 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EMSKV 75 10100865 EN_10100865.pdf | 382 Kbytes |
|
