EMSKV 20 EMV-Z
10065018
WISKA
50
Metal cable glands, IP68 for "EMC", range 6 to 13mm, M20 thread

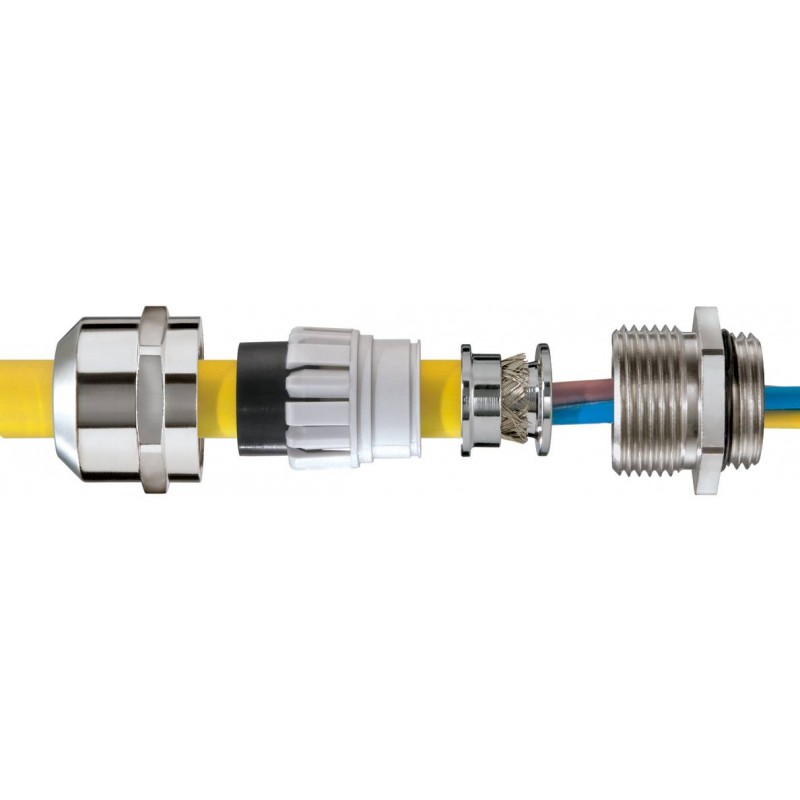

EMC-cable gland, brass with short thread
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Material cable gland | Brass nickel-plated |
Material sealing gasket | EPDM |
Material clamping cage | Polyamide |
Material earthing insert | Brass chromium-plated |
Temp. range min | -40 °C |
Temp. range max | 100 °C |
Protection class | IP68 (5 bar 30 min), IP69 |
Thread type | M |
Ø Connection thread D | 20 |
Lead | 1,5 |
Length screw-in thread L | 6 mm |
Ø cable diameter min | 6 mm |
Ø cable diameter max | 13 mm |
Ø cable below cable shield | 9,5 mm |
Ø cable diameter UL | 7,5 mm - 11,3 mm |
Key width SW | 24 mm |
Collar diameter (E) | 27 mm |
Total length TL | 29 mm - 37 mm |
Type of cable anchorage | A |
Install. torques fitting | 8 N m |
Install. torques cap nut | 8 N m |
Impact category | 6 |
Surface | Nickel-plated |
Order no. nickel-plated | 10065018 |
Type | EMSKV 20 EMV-Z |
Packing unit | 50 |
ETIM-Classification | EC000441 |
Title: | Size: | Type: |
---|---|---|
PDF CATALOG WISKA CABLE ENTRIES AND PROTECTION EN.pdf | 8 Mbytes | |
PDF CATALOG WISKA JUCTION BOXES EN.pdf | 3 Mbytes | |
PDF CATALOG WISKA LIGHTING INSTALLATION AND MARITIME APP EN.pdf | 5 Mbytes | |
EMSKV 20 EMV-Z 10065018 EN_10065018.pdf | 217 Kbytes |
