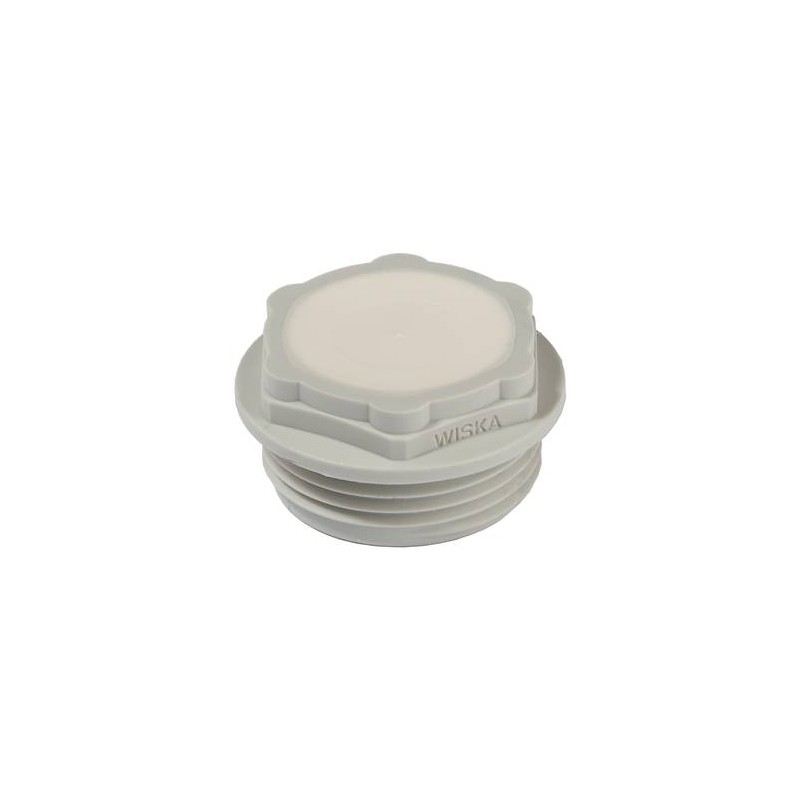

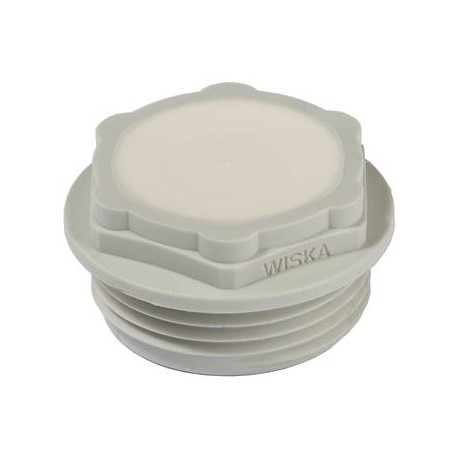

EMS 32 10062570 WISKA Cable inlet membrane, light grey polypropylene, M32 thread
EMS 32
10062570
WISKA
100
Cable inlet membrane, light grey polypropylene, M32 thread
Membrane screw, plastic, RAL 7035, M32
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material | Polypropylene |
| Material membrane | TPE |
| Temp. range min | -30 °C |
| Temp. range max | 80 °C |
| Glow wire test | 750 °C |
| Protection class | IP66 |
| Thread type | M |
| Ø Connection thread D | 32 |
| Lead | 1,5 |
| Length screw-in thread L | 9 mm |
| Ø cable diameter min | 1 mm |
| Ø cable diameter max | 25 mm |
| Key width SW | 32 mm |
| Collar diameter (E) | 36 mm |
| Total length TL | 15 mm |
| Installation torques | 3 N m |
| Product Color | RAL 7035 |
| Order no. RAL 7035 | 10062570 |
| Type | EMS 32 |
| Packing unit | 100 |
| ETIM-Classification | EC000451 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EMS 32 10062570 EN_10062570.pdf | 216 Kbytes |
|
