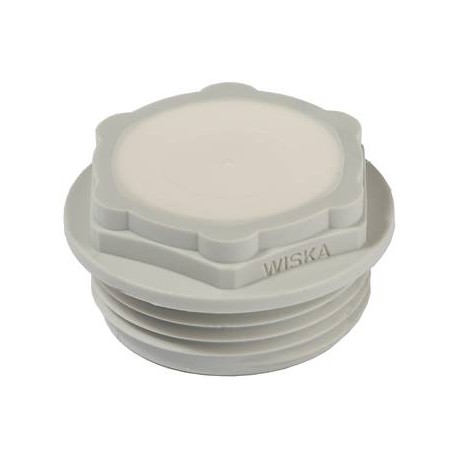

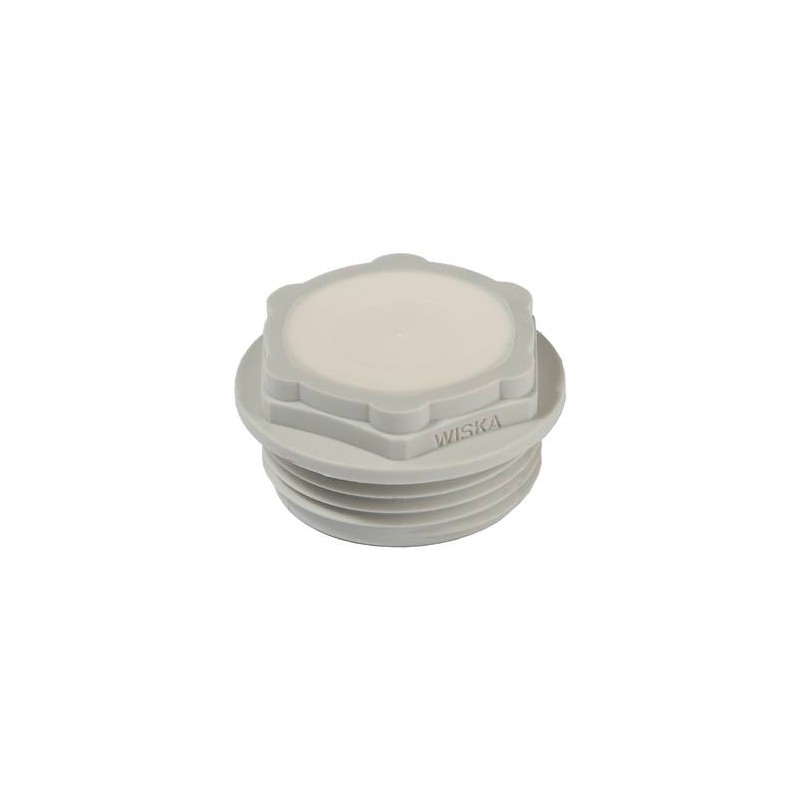

EMS 25 10062569 WISKA Cable inlet membrane, light grey polypropylene, M25 thread
EMS 25
10062569
WISKA
100
Cable inlet membrane, light grey polypropylene, M25 thread
Membrane screw, plastic, RAL 7035, M25
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material | Polypropylene |
| Material membrane | TPE |
| Temp. range min | -30 °C |
| Temp. range max | 80 °C |
| Glow wire test | 750 °C |
| Protection class | IP66 |
| Thread type | M |
| Ø Connection thread D | 25 |
| Lead | 1,5 |
| Length screw-in thread L | 9 mm |
| Ø cable diameter min | 1 mm |
| Ø cable diameter max | 18 mm |
| Key width SW | 24 mm |
| Collar diameter (E) | 29 mm |
| Total length TL | 15 mm |
| Installation torques | 3 N m |
| Product Color | RAL 7035 |
| Order no. RAL 7035 | 10062569 |
| Type | EMS 25 |
| Packing unit | 100 |
| ETIM-Classification | EC000451 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EMS 25 10062569 EN_10062569.pdf | 216 Kbytes |
|
