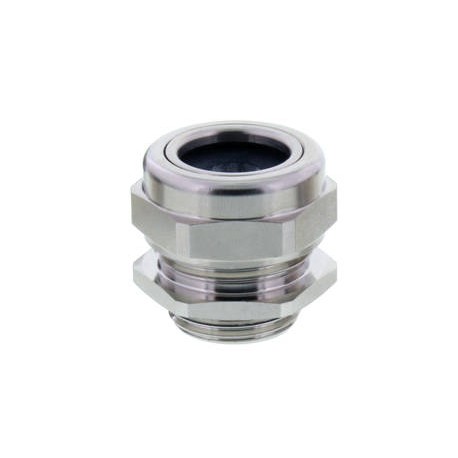

EMCGV 8-040 10106390 WISKA Metal cable glands, IP68, range from 3 to 4mm, thread M8 -40oC/120oC EPDM gasket
EMCGV 8-040
10106390
WISKA
50
Metal cable glands, IP68, range from 3 to 4mm, thread M8 -40oC/120oC EPDM gasket

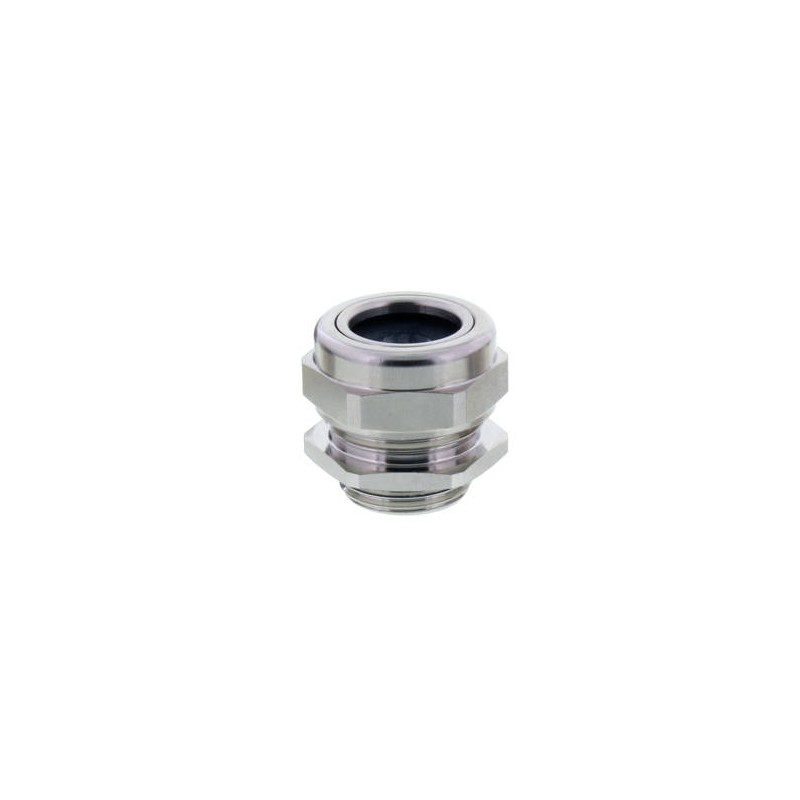

Compression gland, brass nickel-plated, M8
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 120 °C |
| Protection class | IP68 (5 bar 30 min) |
| Thread type | M |
| Ø Connection thread D | 8 |
| Lead | 1,25 |
| Length screw-in thread L | 5 mm |
| Ø cable diameter min | 3 mm |
| Ø cable diameter max | 4,3 mm |
| Key width SW | 11 mm |
| Collar diameter (E) | 12 mm |
| Total length TL | 15 mm - 18,5 mm |
| Order no. nickel-plated | 10106390 |
| Packing unit | 50 |
| Type | EMCGV 8-040 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EMCGV 8-040 10106390 EN_10106390.pdf | 210 Kbytes |
|
