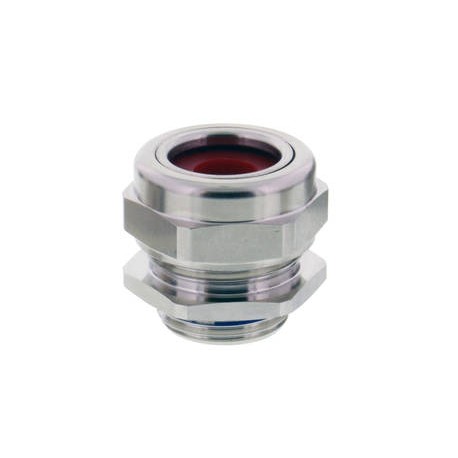

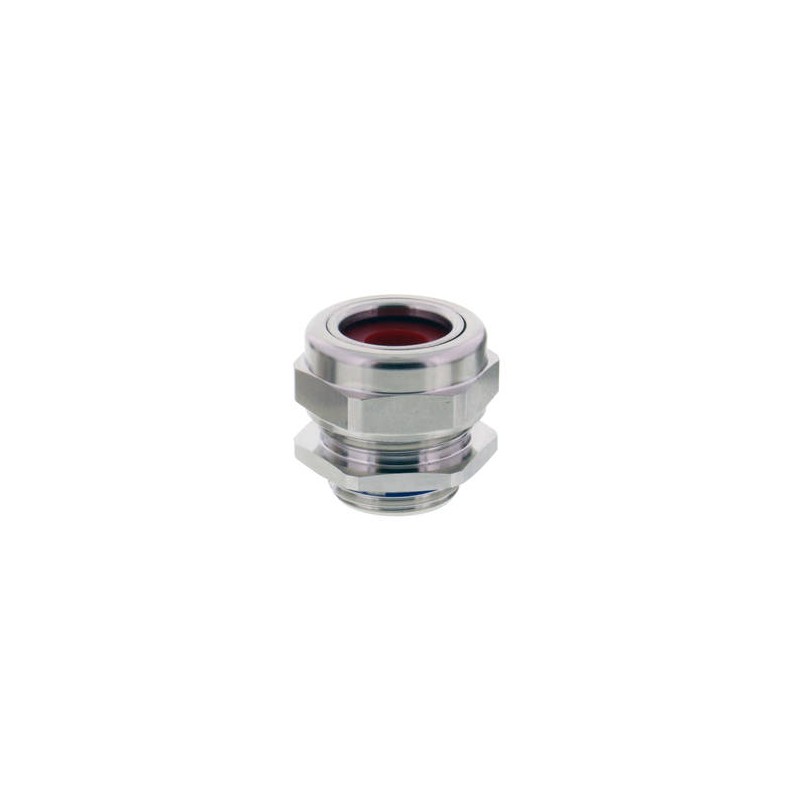

EMCGV 50-340 LT EMV-Z 10106580 WISKA Metal cable glands, IP68, for "EMC", range from 32 to 34mm, thread M40 ..
EMCGV 50-340 LT EMV-Z
10106580
WISKA
10
Metal cable glands, IP68, for "EMC", range from 32 to 34mm, thread M40 -60oC/180oC silicone gasket
EMC Compression gland LowTemp, brass
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material sealing gasket | Silicone |
| Temp. range min | -60 °C |
| Temp. range max | 180 °C |
| Protection class | IP68 (5 bar 30 min) |
| Thread type | M |
| Ø Connection thread D | 50 |
| Lead | 1,5 |
| Length screw-in thread L | 9 mm |
| Ø cable diameter min | 32 mm |
| Ø cable diameter max | 34 mm |
| Key width SW | 55 mm |
| Collar diameter (E) | 60 mm |
| Total length TL | 25,5 mm - 30 mm |
| Order no. nickel-plated | 10106580 |
| Packing unit | 10 |
| Type | EMCGV 50-340 LT EMV-Z |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EMCGV 50-340 LT EMV-Z 10106580 EN_10106580.pdf | 210 Kbytes |
|
