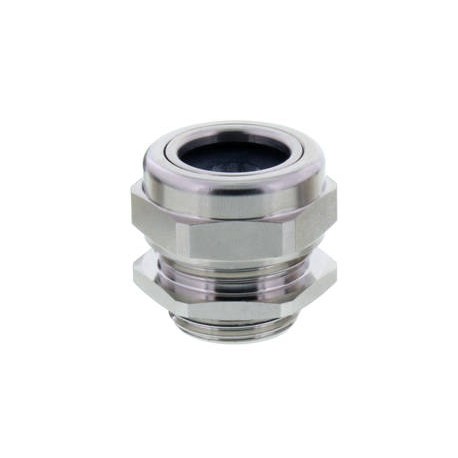

EMCGV 32-200 10106417 WISKA Metal cable glands, IP68, range from 18 to 20mm, thread M32 -40oC/120oC EPDM gas..
EMCGV 32-200
10106417
WISKA
25
Metal cable glands, IP68, range from 18 to 20mm, thread M32 -40oC/120oC EPDM gasket
Compression gland, brass nickel-plated, M32
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 120 °C |
| Protection class | IP68 (5 bar 30 min) |
| Thread type | M |
| Ø Connection thread D | 32 |
| Lead | 1,5 |
| Length screw-in thread L | 8 mm |
| Ø cable diameter min | 18 mm |
| Ø cable diameter max | 20 mm |
| Key width SW | 36 mm |
| Collar diameter (E) | 39 mm |
| Total length TL | 24 mm - 28,5 mm |
| Order no. nickel-plated | 10106417 |
| Packing unit | 25 |
| Type | EMCGV 32-200 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EMCGV 32-200 10106417 EN_10106417.pdf | 210 Kbytes |
|
