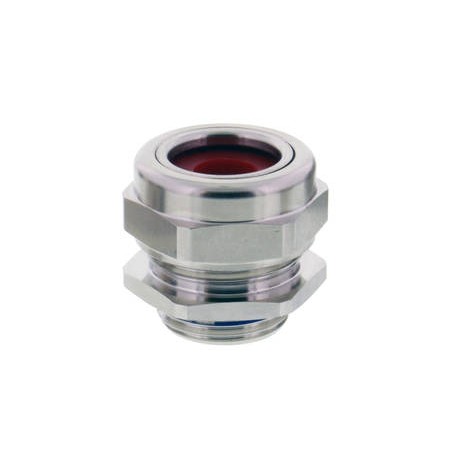

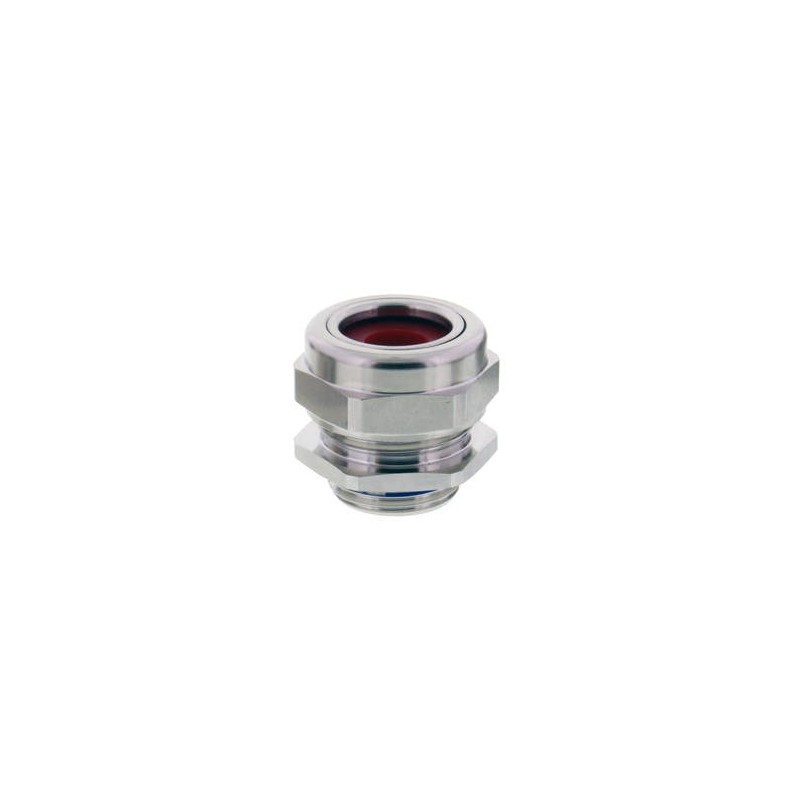

EMCGV 16-080 LT 10106501 WISKA Metal cable glands, IP68, range from 6 to 8mm, thread M16 -60oC/180oC silicon..
EMCGV 16-080 LT
10106501
WISKA
50
Metal cable glands, IP68, range from 6 to 8mm, thread M16 -60oC/180oC silicone gasket
Compression gland LowTemp, brass nickel-plated, M12
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material sealing gasket | Silicone |
| Temp. range min | -60 °C |
| Temp. range max | 180 °C |
| Protection class | IP68 (5 bar 30 min) |
| Thread type | M |
| Ø Connection thread D | 16 |
| Lead | 1,5 |
| Length screw-in thread L | 6 mm |
| Ø cable diameter min | 6 mm |
| Ø cable diameter max | 8 mm |
| Key width SW | 22 mm |
| Collar diameter (E) | 24 mm |
| Total length TL | 22 mm - 26,5 mm |
| Order no. nickel-plated | 10106501 |
| Packing unit | 50 |
| Type | EMCGV 16-080 LT |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EMCGV 16-080 LT 10106501 EN_10106501.pdf | 209 Kbytes |
|
