WISKAEBF90-29-40/B 10108895 WISKA Elbow fitting 90o PA black IP68 for DN29/34 tube, M40 thread

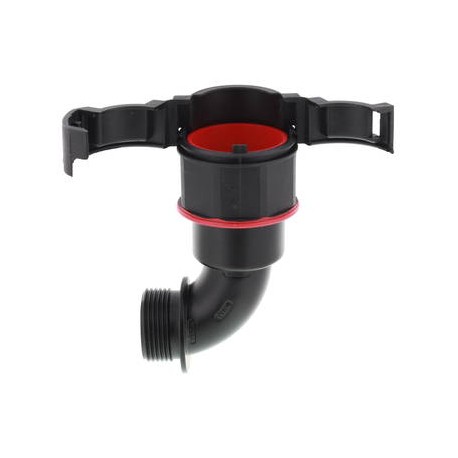

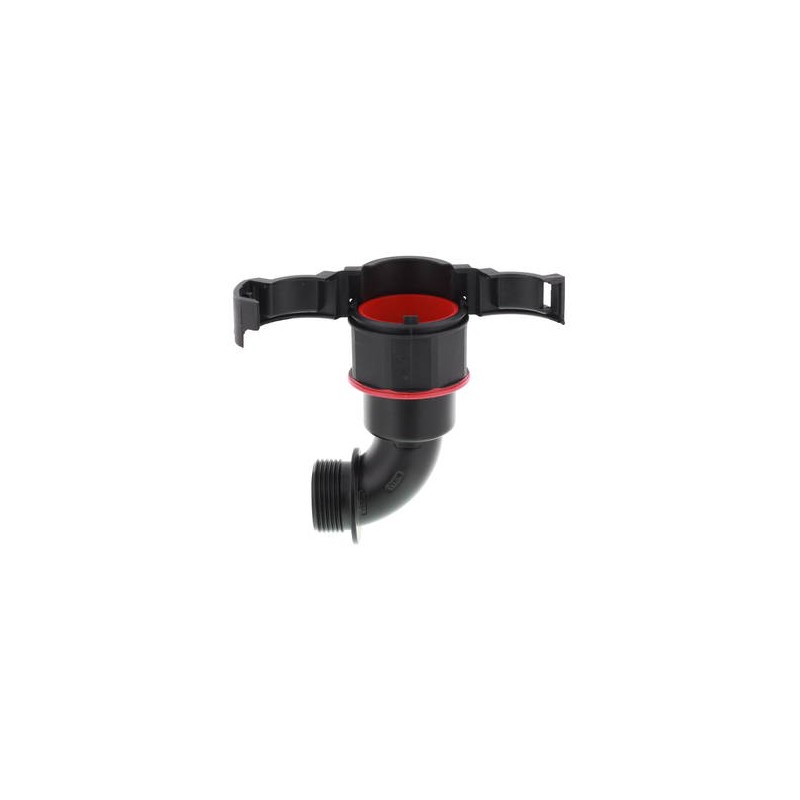

WISKA EBF90-29-40/B 10108895 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

EBF90-29-40/B 10108895 WISKA Elbow fitting 90o PA black IP68 for DN29/34 tube, M40 thread

Reference: EBF90-29-40/B

Code: 10108895

Manufacturer: WISKA

Description:

Elbow fitting 90o PA black IP68 for DN29/34 tube, M40 thread
Conduit fitting, 90° angle, plastic

Categories:

  • WISKA

Brand new product in its original packaging covered by the warranties and certifications provided by WISKA

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 291,16 €

Unit Price: 11,646 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3-4 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

LogoLogoLogoLogoLogoLogo
Material Conduit fittingpolyamide UL94-V0
Material Connection threadpolyamide UL94-V0
Material sealing gasketTPU
Protection classIP68, IP66
Temp. range min-40 °C
Temp. range max100 °C
Operational areasEN 45545 - Railway
NW29
Thread typeM
Ø Connection thread D40
Lead1,5
Length screw-in thread L14,5 mm
Ø inside26 mm
Ø Gasket F50 mm
Key width SW41 mm
Width B118,8 mm
Total length TL69,3 mm
Type of conduit fitting90° Angle
UL 1696Yes
Product ColorRAL 9005
TypeEBF90-29-40-BK
Order no. RAL 900510108895
Packing unit10
ETIM-ClassificationEC001176

DATASHEET - PDF

Title
Size
Type
EBF90-29-40/B 10108895 EN_10108895.pdf
266 Kbytes
PDF CATALOGUE WISKA EN
16 Mbytes
