WISKAEBF90-23-25/G 10106970 WISKA Elbow fitting 90o PA grey IP68 for DN23/28 tube, M25 thread
WISKA EBF90-23-25/G 10106970 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

EBF90-23-25/G 10106970 WISKA Elbow fitting 90o PA grey IP68 for DN23/28 tube, M25 thread

Reference: EBF90-23-25/G

Code: 10106970

Manufacturer: WISKA

Description:

Elbow fitting 90o PA grey IP68 for DN23/28 tube, M25 thread
Conduit fitting, 90° angle, plastic

Categories:

  • WISKA

Brand new product in its original packaging covered by the warranties and certifications provided by WISKA

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 166,55 €

Unit Price: 6,662 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3-4 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

LogoLogoLogoLogoLogoLogo
Material Conduit fittingpolyamide UL94-V0
Material Connection threadpolyamide UL94-V0
Material sealing gasketTPU
Protection classIP68, IP66
Temp. range min-40 °C
Temp. range max100 °C
Operational areasEN 45545 - Railway

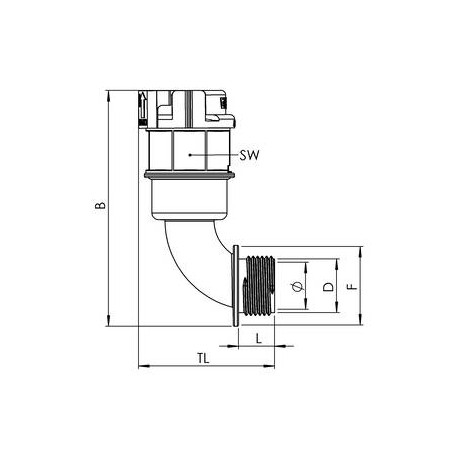

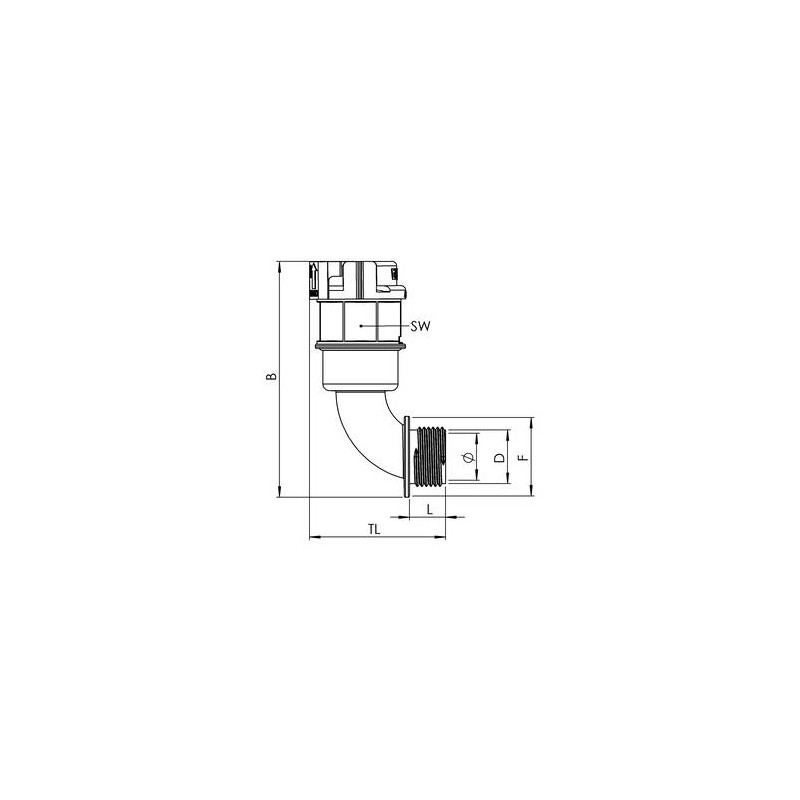

NW23
Thread typeM
Ø Connection thread D25
Lead1,5
Length screw-in thread L13 mm
Ø inside19 mm
Ø Gasket F32 mm
Key width SW36 mm
Width B92,4 mm
Total length TL51,5 mm
Type of conduit fitting90° Angle
UL 1696Yes
Product ColorRAL 7031
TypeEBF90-23-25-BG
Order no. RAL 703110106970
Packing unit25
ETIM-ClassificationEC001176

DATASHEET - PDF

Title
Size
Type
EBF90-23-25/G 10106970 EN_10106970.pdf
218 Kbytes
PDF CATALOGUE WISKA EN
16 Mbytes
