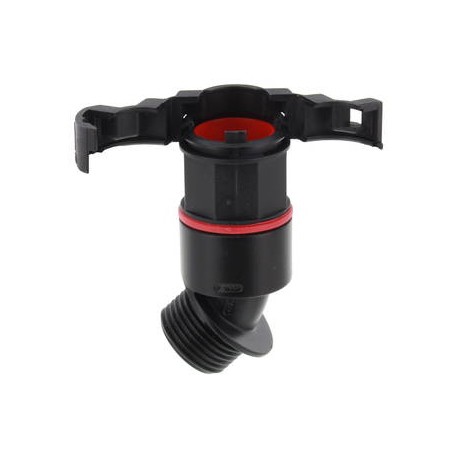

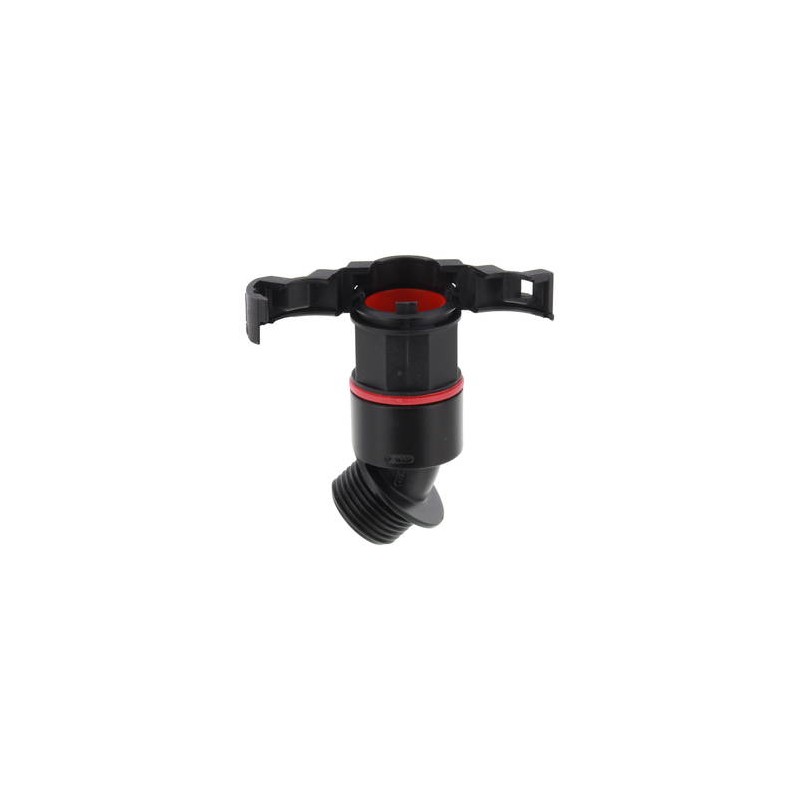

EBF45-48-63/B 10108883 WISKA Ip68 black 45o PA elbow fitting for DN48/54 tube, M63 thread
EBF45-48-63/B
10108883
WISKA
5
Ip68 black 45o PA elbow fitting for DN48/54 tube, M63 thread
Conduit fitting, 45° angle, plastic, RAL 9005, NW 48 / M63
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material Conduit fitting | polyamide UL94-V0 |
| Material Connection thread | polyamide UL94-V0 |
| Material sealing gasket | TPU |
| Protection class | IP66, IP68 |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Operational areas | EN 45545 - Railway |
| NW | 48 |
| Thread type | M |
| Ø Connection thread D | 63 |
| Lead | 1,5 |
| Length screw-in thread L | 17,5 mm |
| Ø inside | 44 mm |
| Ø Gasket F | 72 mm |
| Key width SW | 60 mm |
| Width B | 110,8 mm |
| Total length TL | 104,3 mm |
| Type of conduit fitting | 45° Angle |
| UL 1696 | Yes |
| Product Color | RAL 9005 |
| Type | EBF45-48-63-BK |
| Order no. RAL 9005 | 10108883 |
| Packing unit | 5 |
| ETIM-Classification | EC001176 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EBF45-48-63/B 10108883 EN_10108883.pdf | 271 Kbytes |
|
