COMBI 607/empty/S 10060648 WISKA Conex box. + membrane or inlet with M25 thread, black RAL 9005, IP66/67 110..
COMBI 607/empty/S
10060648
WISKA
3
Conex box. + membrane or inlet with M25 thread, black RAL 9005, IP66/67 110x110x66

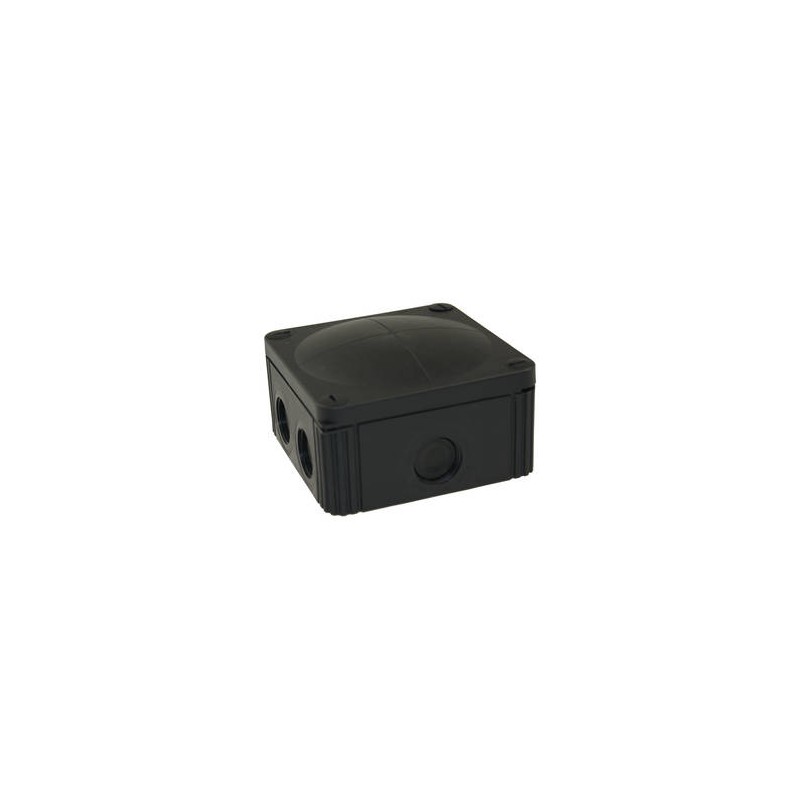

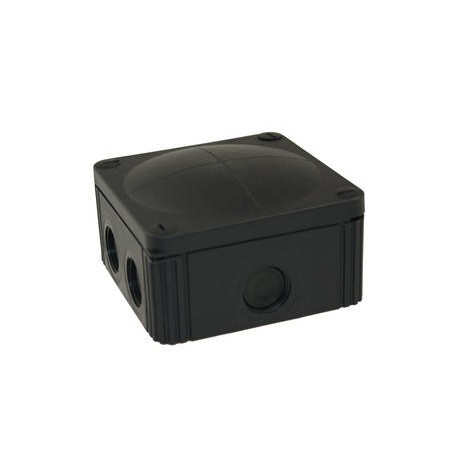

Junction box 110x110x66mm, polypropylene, RAL 9005
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material | Polypropylene |
| Material sealing gasket | TPE |
| Temp. range min | -30 °C |
| Temp. range max | 100 °C |
| Temperatures during install. | -5 °C - 60 °C |
| Protection class | IP66 / IP67 |
| Glow wire test | 750 °C |
| Voltage | 690 V |
| Rated cross section | 6 mm² |
| Fixing | 4 internal openings |
| Ø cable diameter min | 5,2 mm |
| Ø cable diameter max | 17 mm |
| External dimensions LxWxH | 110 x 110 x 66mm |
| Using for cable gland |  |
| Product Color | RAL 9005 |
| WISKA-Order no. | 10060648 |
| Type | COMBI 607 BK |
| Packing unit | 3 |
| ETIM-Classification | EC002600 |
| Remarks: IP66: using the membrane entry IP67: using the threaded entry together with ESKV cable gland Equipment: - 7 M25 threaded membrane entries - 3 membrane cable entries through rear - 4 captive cover screws Mounting: - 4 internal openings outside of the sealing area | |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| COMBI 607/empty/S 10060648 EN_10060648.pdf | 350 Kbytes |
|
