WISKACOMBI 407/empty 10105595 WISKA Conex box. + membrane or inlet with M20/M25 thread, light grey RAL 7035, IP66..
WISKA COMBI 407/empty 10105595 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

COMBI 407/empty 10105595 WISKA Conex box. + membrane or inlet with M20/M25 thread, light grey RAL 7035, IP66..

Reference: COMBI 407/empty

Code: 10105595

Manufacturer: WISKA

Description:

Conex box. + membrane or inlet with M20/M25 thread, light grey RAL 7035, IP66 95x95x60

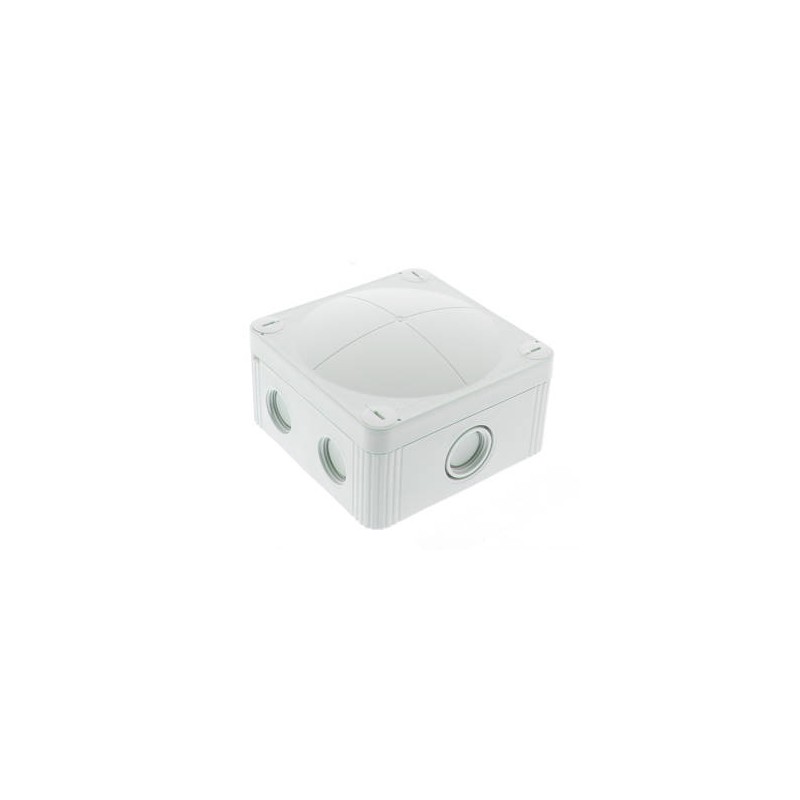

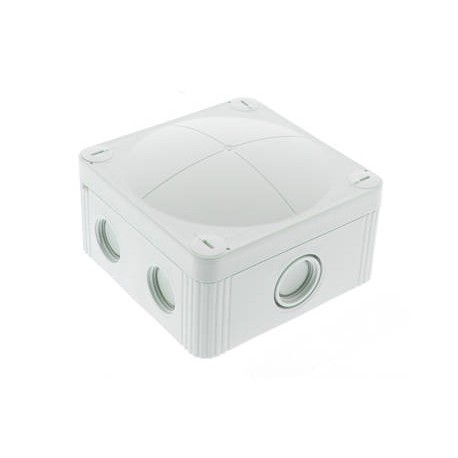

Junction box 95x95x60mm, polypropylene, RAL 7035

Categories:

  • WISKA

Brand new product in its original packaging covered by the warranties and certifications provided by WISKA

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 24,24 €

Unit Price: 4,848 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3-4 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Features

LogoLogoLogoLogo
MaterialPolypropylene
Material sealing gasketTPE
Temp. range min-30 °C
Temp. range max100 °C
Temperatures during install.-5 °C - 60 °C
Protection classIP66 / IP67
Glow wire test750 °C
Voltage690 V
Rated cross section4 mm²
Fixing4 internal openings
Ø cable diameter min3 mm
Ø cable diameter max12 mm
External dimensions LxWxH95 x 95 x 60mm
Type of cable glandM 25 x 1,5, M 20 x 1,5
Using for cable glandUsing for cable gland
Product ColorRAL 7035
WISKA-Order no.10105595
TypeCOMBI 407 LG
Packing unit5
ETIM-ClassificationEC002600
Remarks:

IP66: using the membrane entry
IP67: using the threaded entry together with ESKV cable gland

Equipment:
- 6x M20 threaded membrane entries and 1 middle M20 threaded membrane entry with knockout to M25
- 2 membrane cable entries through rear
- 4 captive cover screws
- including mounting clip

Fixing:
With mounting clip or 4 internal openings outside of the sealing area
