WISKACOMBI 1210/empty/S 10101460 WISKA Conex box. + membrane or inlet with thread M20, M25, black RAL 9005, IP66/..

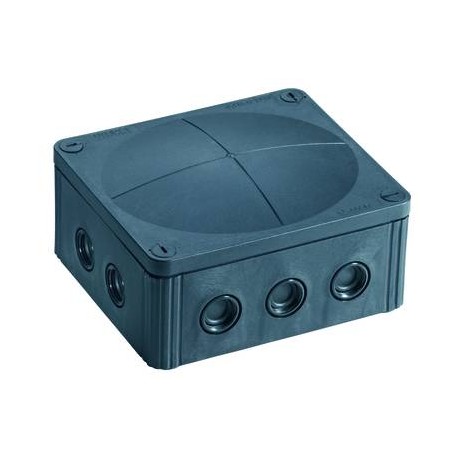

WISKA COMBI 1210/empty/S 10101460 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

COMBI 1210/empty/S 10101460 WISKA Conex box. + membrane or inlet with thread M20, M25, black RAL 9005, IP66/..

Reference: COMBI 1210/empty/S

Code: 10101460

Manufacturer: WISKA

Description:

Conex box. + membrane or inlet with thread M20, M25, black RAL 9005, IP66/67 160x140x81
Junction box, polypropylene

Categories:

  • WISKA

Brand new product in its original packaging covered by the warranties and certifications provided by WISKA

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 24,30 €

Unit Price: 12,15 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3-4 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

LogoLogoLogoLogo
MaterialPolypropylene
Material sealing gasketTPE
Temp. range min-30 °C
Temp. range max100 °C
Temperatures during install.-5 °C - 60 °C
Protection classIP66 / IP67
Glow wire test750 °C
Voltage690 V
Rated cross section10 mm²
Fixing4 internal openings
Ø cable diameter min3 mm
Ø cable diameter max12 mm
External dimensions LxWxH160 x 140 x 81mm
Using for cable glandUsing for cable gland
Product ColorRAL 9005
WISKA-Order no.10101460
TypeCOMBI 1210 BK
Packing unit2
ETIM-ClassificationEC002600
Remarks:

IP66: using the membrane entry
IP67: using the threaded entry together with ESKV cable gland

Equipment:
- 10 M20 threaded membrane entries and M25 knockouts
- 4 membrane cable entries through rear
- 4 captive cover screws

Mounting:
- 4 internal openings outside of the sealing area

DATASHEET - PDF

Title
Size
Type
COMBI 1210/empty/S 10101460 EN_10101460.pdf
426 Kbytes
PDF CATALOGUE WISKA EN
16 Mbytes
