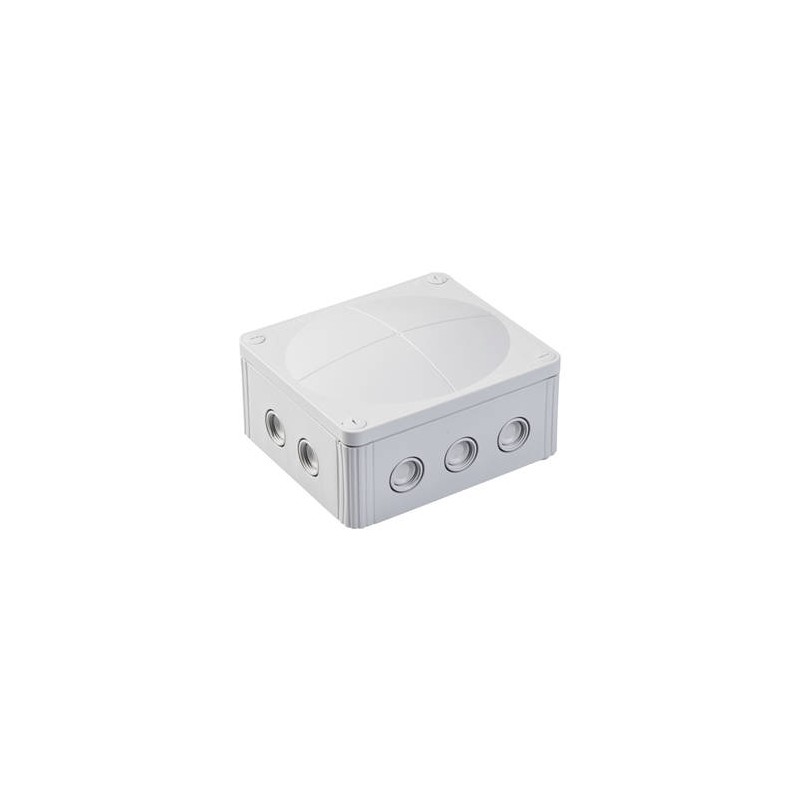

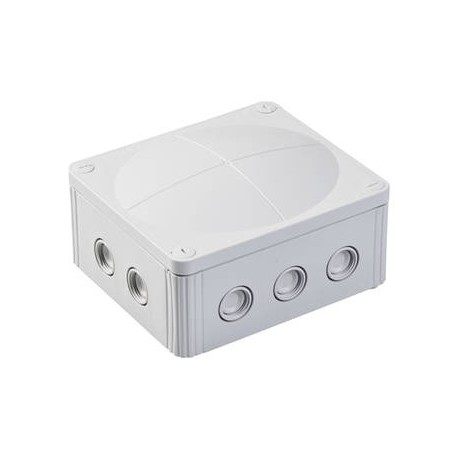

COMBI 1210/empty 10101459 WISKA Conex box. + membrane or inlet with thread M20, M25, light grey RAL 7035, IP..
COMBI 1210/empty
10101459
WISKA
2
Conex box. + membrane or inlet with thread M20, M25, light grey RAL 7035, IP66/67 160x140x81
Junction box, polypropylene
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material | Polypropylene |
| Material sealing gasket | TPE |
| Temp. range min | -30 °C |
| Temp. range max | 100 °C |
| Temperatures during install. | -5 °C - 60 °C |
| Protection class | IP66 / IP67 |
| Glow wire test | 750 °C |
| Voltage | 690 V |
| Rated cross section | 10 mm² |
| Fixing | 4 internal openings |
| Ø cable diameter min | 3 mm |
| Ø cable diameter max | 12 mm |
| External dimensions LxWxH | 160 x 140 x 81mm |
| Using for cable gland |  |
| Product Color | RAL 7035 |
| WISKA-Order no. | 10101459 |
| Type | COMBI 1210 LG |
| Packing unit | 2 |
| ETIM-Classification | EC002600 |
| Remarks: IP66: using the membrane entry IP67: using the threaded entry together with ESKV cable gland Equipment: - 10 M20 threaded membrane entries and M25 knockouts - 4 membrane cable entries through rear - 4 captive cover screws Mounting: - 4 internal openings outside of the sealing area | |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| COMBI 1210/empty 10101459 EN_10101459.pdf | 390 Kbytes |
|
