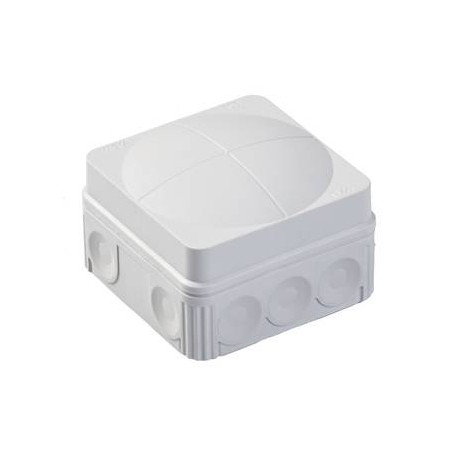

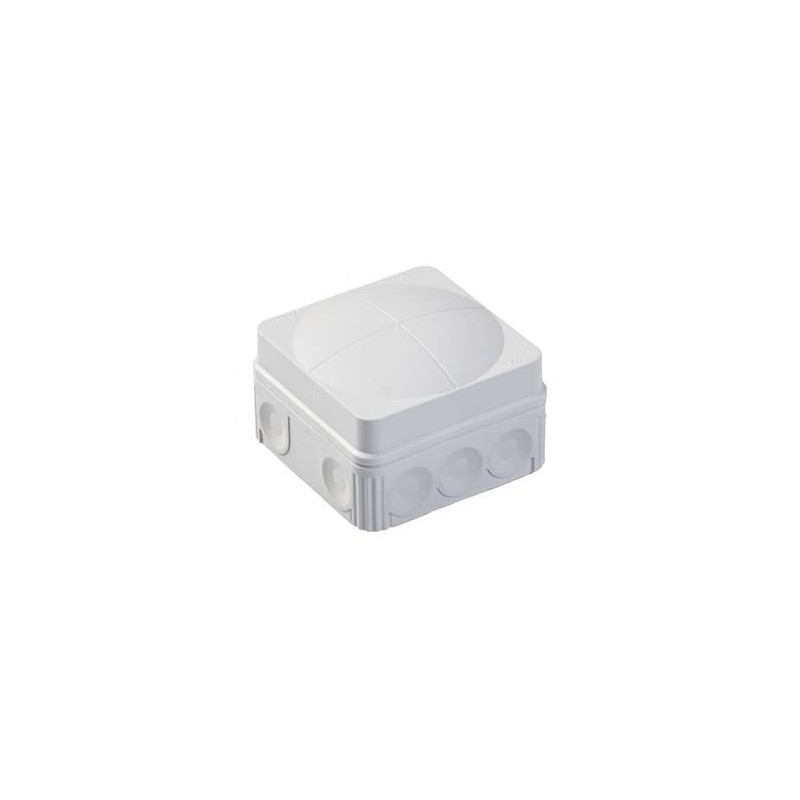

COMBI 108/empty 10060522 WISKA Conex box. With membrane, light grey RAL 7035, IP66 pressure cap 76x76x51, ra..
COMBI 108/empty
10060522
WISKA
10
Conex box. With membrane, light grey RAL 7035, IP66 pressure cap 76x76x51, range from 3, to 14mm.
Junction box 76x76x51mm, polypropylene, RAL 7035
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material | Polypropylene |
| Material sealing gasket | TPE |
| Temp. range min | -30 °C |
| Temp. range max | 100 °C |
| Temperatures during install. | -5 °C - 60 °C |
| Protection class | IP66 |
| Glow wire test | 750 °C |
| Voltage | 400 V |
| Rated cross section | 2,5 mm² |
| Fixing | 2 internal openings |
| Ø cable diameter min | 3 mm |
| Ø cable diameter max | 14 mm |
| External dimensions LxWxH | 76 x 76 x 51mm |
| Using for cable gland |  |
| Product Color | RAL 7035 |
| WISKA-Order no. | 10060522 |
| Type | COMBI 108 LG |
| Packing unit | 10 |
| ETIM-Classification | EC002600 |
| Remarks: Equipment: - 10 elastic self-sealing puncture-membranes for cable entry on the side and 2 in the bottom Fixing: By two internal openings outside of the sealing area | |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| COMBI 108/empty 10060522 EN_10060522.pdf | 359 Kbytes |
|
