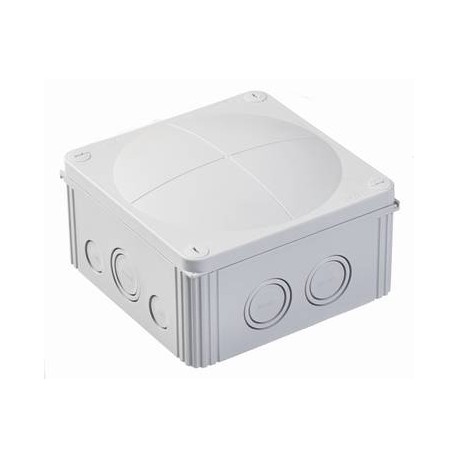

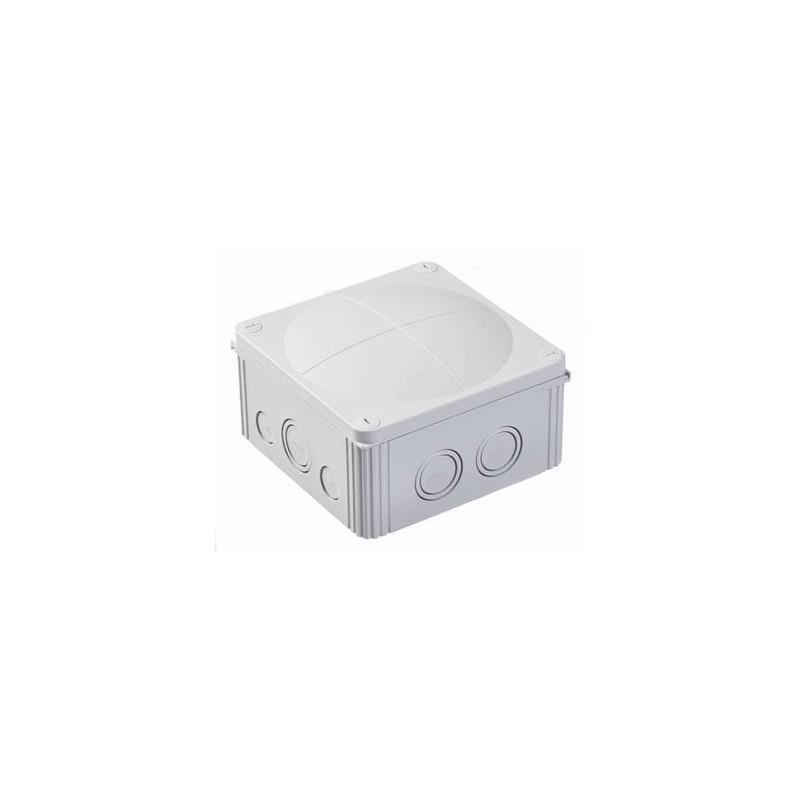

WISKA COMBI 1010/empty 10060702 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

COMBI 1010/empty 10060702 WISKA Conex box. pre-cut M20, M25 and M32, light grey RAL 7035, IP66/67 140x140x82

Reference: COMBI 1010/empty

Code: 10060702

Manufacturer: WISKA

Description:

Conex box. pre-cut M20, M25 and M32, light grey RAL 7035, IP66/67 140x140x82
Junction box 140x140x82mm, polypropylene, RAL 7035

Categories:

  • WISKA

Brand new product in its original packaging covered by the warranties and certifications provided by WISKA

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 22,83 €

Unit Price: 11,417 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3-4 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Features

LogoLogoLogoLogo
MaterialPolypropylene
Material sealing gasketTPE
Temp. range min-30 °C
Temp. range max100 °C
Temperatures during install.-5 °C - 60 °C
Protection classIP66 / IP67
Glow wire test750 °C
Voltage690 V
Rated cross section10 mm²
Fixing4 internal openings
Ø cable diameter min6 mm
Ø cable diameter max21 mm
External dimensions LxWxH140 x 140 x 82mm
Using for cable glandUsing for cable gland
Product ColorRAL 7035
WISKA-Order no.10060702
TypeCOMBI 1010 LG
Packing unit2
ETIM-ClassificationEC002600
Remarks:

IP66: using the QUIXX self sealing membrane screw
IP67: using the knockout entry together with ESKV cable gland

Equipment:
- 10 knockouts side 5x M25/M32; 2x M20; 3x M20/M32
- 4 knockouts in the bottom 2x M25/M32; 2x M20/M25
- 4 captive cover screws
- including QUIXX EMS self-sealing membrane screw 2x M25; 1x M32

Mounting:
4 internal openings outside of the sealing area
