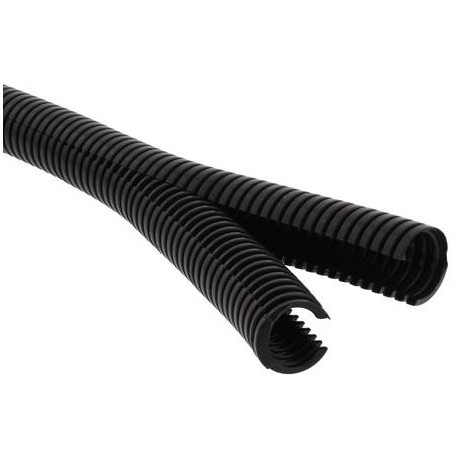

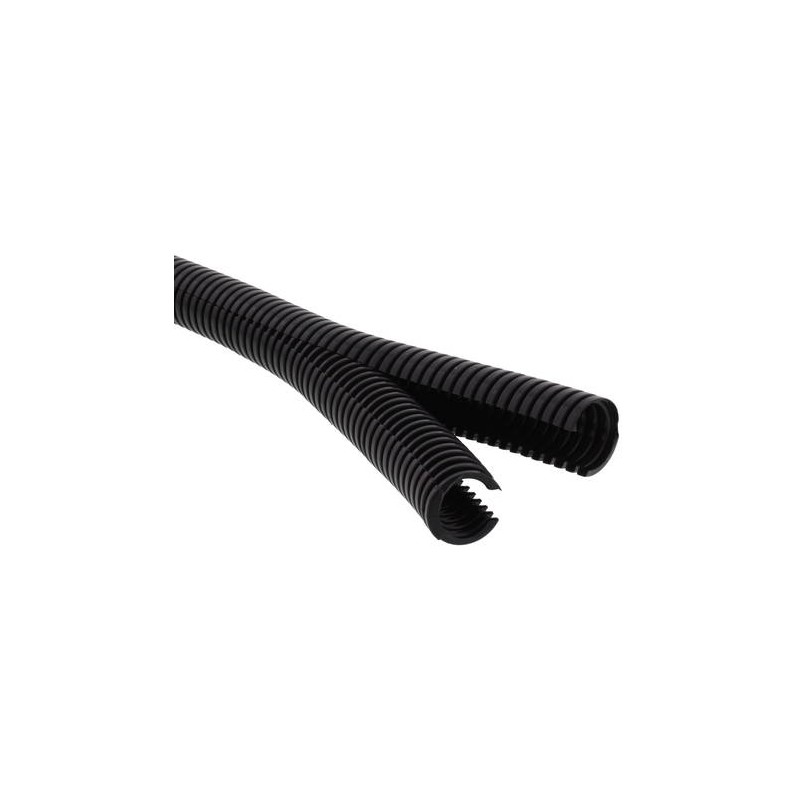

BCAV-D-17/B 10107136 WISKA Double open tube PA, V2, black standard weight, DN17/21
BCAV-D-17/B
10107136
WISKA
50
Double open tube PA, V2, black standard weight, DN17/21
Conduit, devided PA6 UL94-V2
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material | PA6 UL94-V2 |
| Temp. range min | -40 °C |
| Temp. range max | 125 °C |
| Operational areas | for subsequent assembly |
| Product Color | RAL 9005 |
| NW | 17 |
| External diameter ED | 21 mm |
| Ø inside | 14,3 mm |
| Profile width A | 4,3 mm |
| Width B | 2,9 mm |
| Bending radius R | 85 mm |
| Wall thickness S | 0,6 mm |
| Closable (two-part) | yes |
| Type | BCAV-17-D-BK |
| Order no. RAL 9005 | 10107136 |
| Packing unit | 50 m |
| ETIM-Classification | EC001177 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| BCAV-D-17/B 10107136 EN_10107136.pdf | 243 Kbytes |
|
