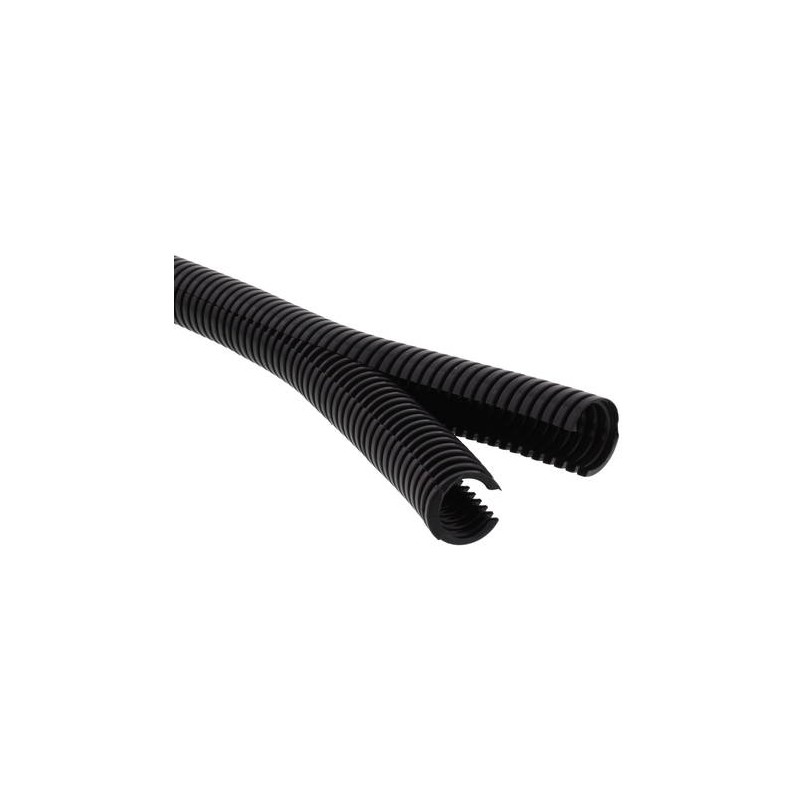

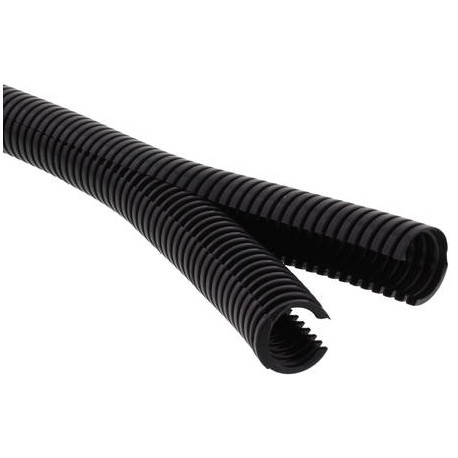

BCA-D-29/B 10107124 WISKA Double open tube PA, V0, black standard weight, DN29/34
BCA-D-29/B
10107124
WISKA
25
Double open tube PA, V0, black standard weight, DN29/34
Conduit devided PA6 UL94-V0, RAL 9005, NW29
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material | PA6 UL94-V0 |
| Temp. range min | -40 °C |
| Temp. range max | 140 °C |
| Operational areas | EN 45545 - Railway |
| Product Color | RAL 9005 |
| NW | 29 |
| External diameter ED | 34,5 mm |
| Ø inside | 26,6 mm |
| Profile width A | 5,1 mm |
| Width B | 3,3 mm |
| Bending radius R | 140 mm |
| Wall thickness S | 0,8 mm |
| Closable (two-part) | yes |
| Type | BCA-29-D-BK |
| Order no. RAL 9005 | 10107124 |
| Packing unit | 25 m |
| ETIM-Classification | EC001177 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| BCA-D-29/B 10107124 EN_10107124.pdf | 256 Kbytes |
|
