APM 48/63
10063677
WISKA
5

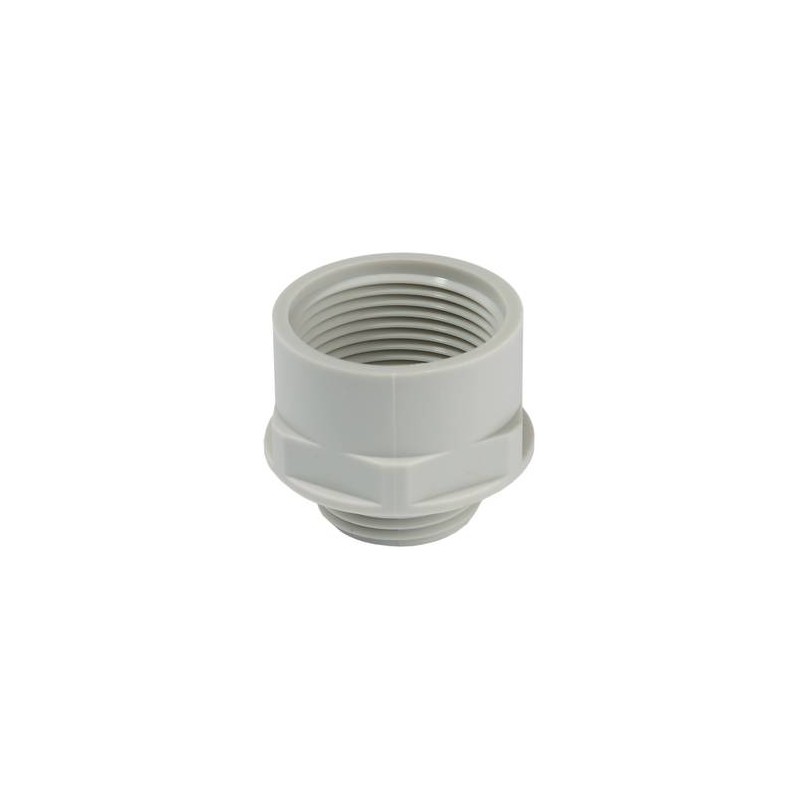

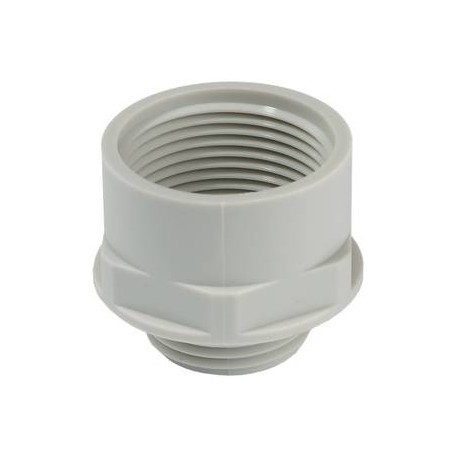

Light grey converter PA outer thread PG.48, interior M63
Adaptor polyamide, RAL 7035, Pg48 / M63
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Material | Polyamide, fibre reinforced |
Temp. range min | -40 °C |
Temp. range max | 100 °C |
Glow wire test | 650 °C |
Thread type outer | PG |
Ø outer thread | 48 |
Length screw-in thread L | 15 mm |
Thread type inner | M |
Ø inner thread | 63 |
Lead inner | 1,5 |
Length internal thread | 15,5 mm |
Total length TL | 33 mm |
Key width SW | 68 mm |
Collar diameter (E) | 72 mm |
Form | A |
Product Color | RAL 7035 |
Order no. RAL 7035 | 10063677 |
Type | APM 48/63 |
Packing unit | 5 |
ETIM-Classification | EC000938 |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE WISKA EN.pdf | 12 Mbytes | |
APM 48/63 10063677 EN_10063677.pdf | 179 Kbytes |
