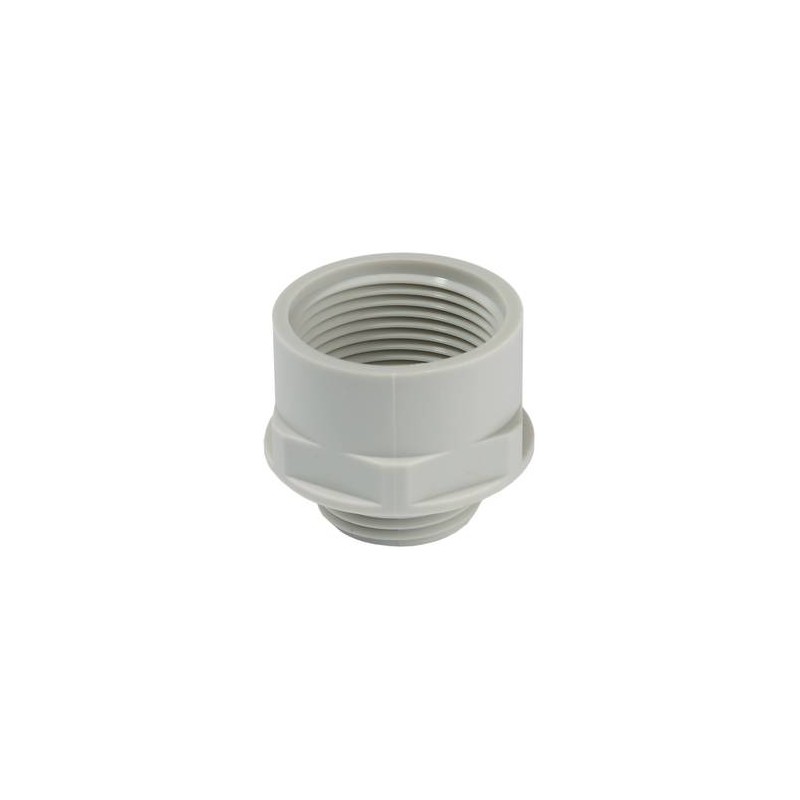

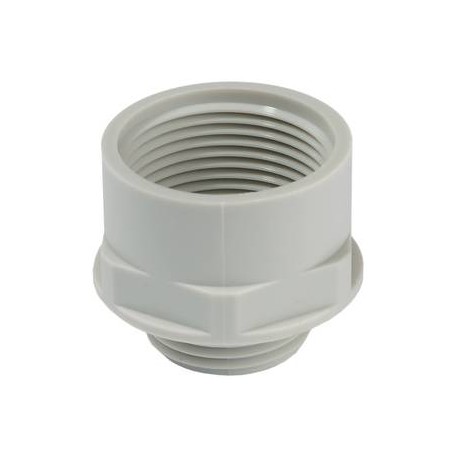

APM 16/32 10063663 WISKA Light grey converter PA outer thread PG.16, interior M32
APM 16/32
10063663
WISKA
25
Light grey converter PA outer thread PG.16, interior M32
Adaptor polyamide, RAL 7035, Pg16 / M32
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material | Polyamide, fibre reinforced |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Glow wire test | 650 °C |
| Thread type outer | PG |
| Ø outer thread | 16 |
| Length screw-in thread L | 10 mm |
| Thread type inner | M |
| Ø inner thread | 32 |
| Lead inner | 1,5 |
| Length internal thread | 15,5 mm |
| Total length TL | 28 mm |
| Key width SW | 36 mm |
| Collar diameter (E) | 40 mm |
| Form | A |
| Product Color | RAL 7035 |
| Order no. RAL 7035 | 10063663 |
| Type | APM 16/32 |
| Packing unit | 25 |
| ETIM-Classification | EC000938 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| APM 16/32 10063663 EN_10063663.pdf | 179 Kbytes |
|
