APM 11/16 10063655 WISKA Light grey converter PA outer thread PG.11, interior M16
APM 11/16
10063655
WISKA
25

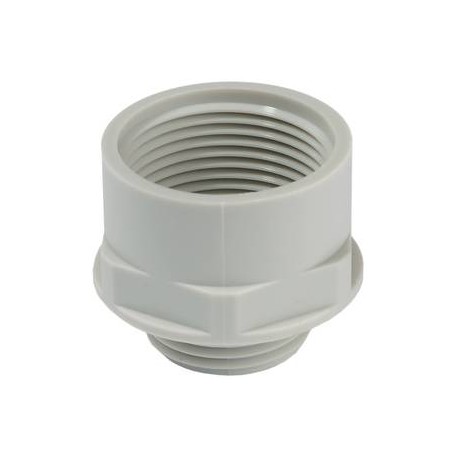

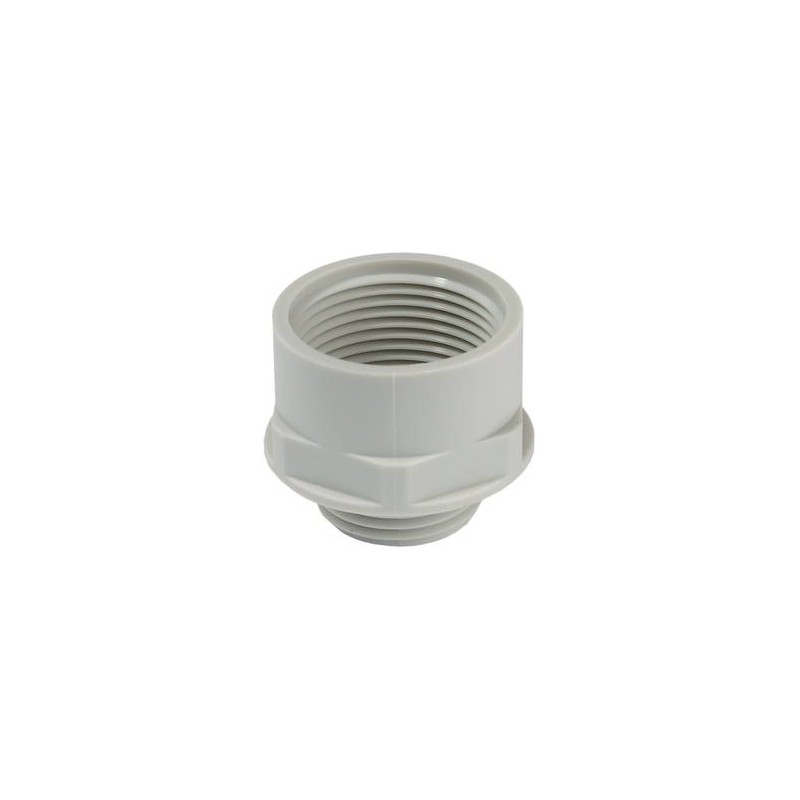

Light grey converter PA outer thread PG.11, interior M16
Adaptor polyamide, RAL 7035, Pg11 / M16
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material | Polyamide, fibre reinforced |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Glow wire test | 650 °C |
| Thread type outer | PG |
| Ø outer thread | 11 |
| Length screw-in thread L | 9 mm |
| Thread type inner | M |
| Ø inner thread | 16 |
| Lead inner | 1,5 |
| Length internal thread | 15,5 mm |
| Total length TL | 27 mm |
| Key width SW | 22 mm |
| Collar diameter (E) | 24 mm |
| Form | A |
| Product Color | RAL 7035 |
| Order no. RAL 7035 | 10063655 |
| Type | APM 11/16 |
| Packing unit | 25 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| APM 11/16 10063655 EN_10063655.pdf | 178 Kbytes |
|
