AMP 50/36
10063645
WISKA
5

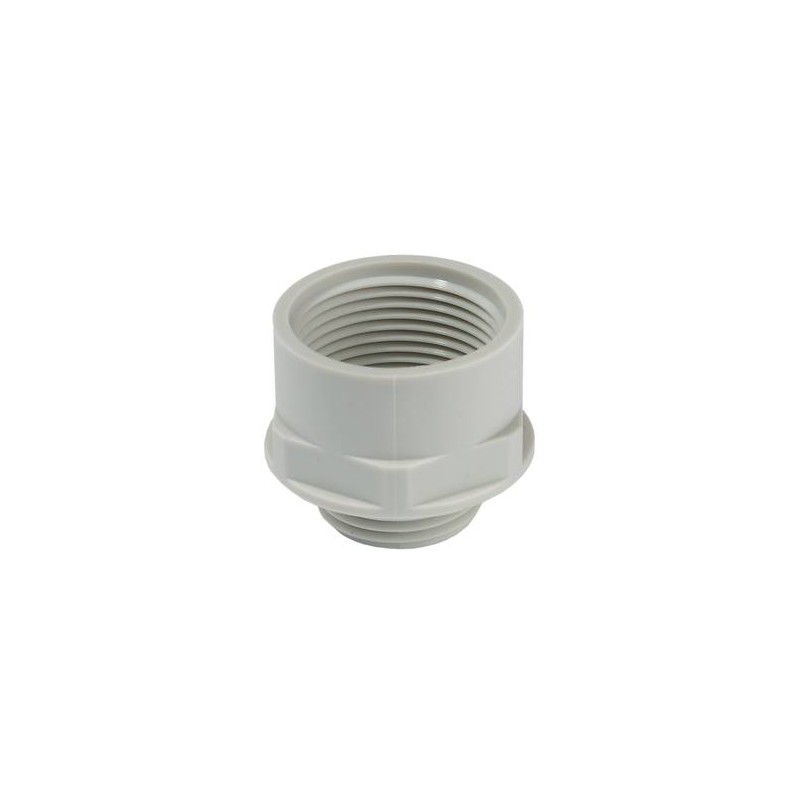

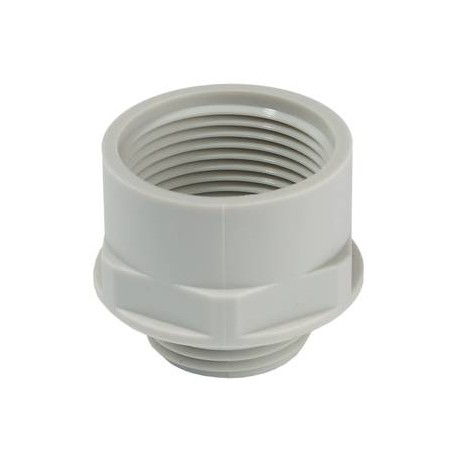

PA light grey converter, M50 outer thread, PG.36 interior
Adaptor polyamide, RAL 7035, M50 / Pg36
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Material | Polyamide, fibre reinforced |
Temp. range min | -40 °C |
Temp. range max | 100 °C |
Glow wire test | 650 °C |
Thread type outer | M |
Ø outer thread | 50 |
Lead outer | 1,5 |
Length screw-in thread L | 14 mm |
Thread type inner | PG |
Ø inner thread | 36 |
Length internal thread | 15,5 mm |
Total length TL | 32 mm |
Key width SW | 55 mm |
Collar diameter (E) | 61 mm |
Form | A |
Product Color | RAL 7035 |
Order no. RAL 7035 | 10063645 |
Type | AMP 50/36 |
Packing unit | 5 |
ETIM-Classification | EC000938 |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE WISKA EN.pdf | 12 Mbytes | |
AMP 50/36 10063645 EN_10063645.pdf | 178 Kbytes |
