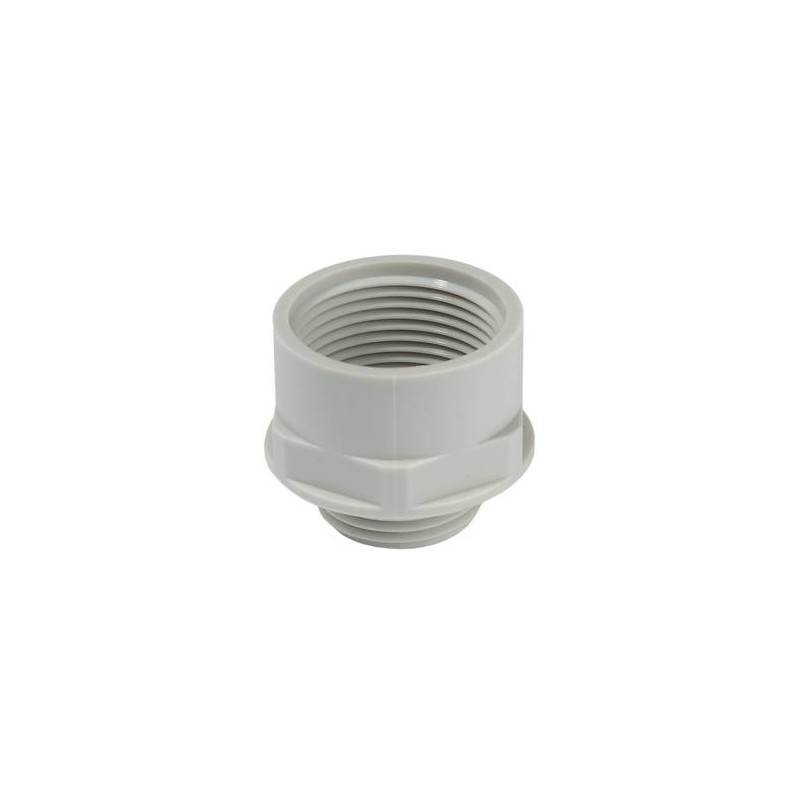

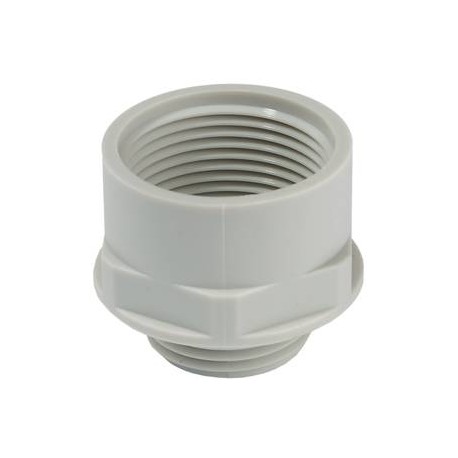

AMP 16/9 10063630 WISKA PA light grey converter, M16 outer thread, PG.09 interior
AMP 16/9
10063630
WISKA
25
PA light grey converter, M16 outer thread, PG.09 interior
Adaptor polyamide, RAL 7035, M16 / Pg9
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material | Polyamide, fibre reinforced |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Glow wire test | 650 °C |
| Thread type outer | M |
| Ø outer thread | 16 |
| Lead outer | 1,5 |
| Length screw-in thread L | 9 mm |
| Thread type inner | PG |
| Ø inner thread | 9 |
| Length internal thread | 15,5 mm |
| Total length TL | 27 mm |
| Key width SW | 20 mm |
| Collar diameter (E) | 22 mm |
| Form | A |
| Product Color | RAL 7035 |
| Order no. RAL 7035 | 10063630 |
| Type | AMP 16/9 |
| Packing unit | 25 |
| ETIM-Classification | EC000938 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| AMP 16/9 10063630 EN_10063630.pdf | 178 Kbytes |
|
