Product:MTZ18-4VM DANFOSS REFRIGERATION Reciproc...
Images are for illustrative purposes only. Please refer to data sheet for details.

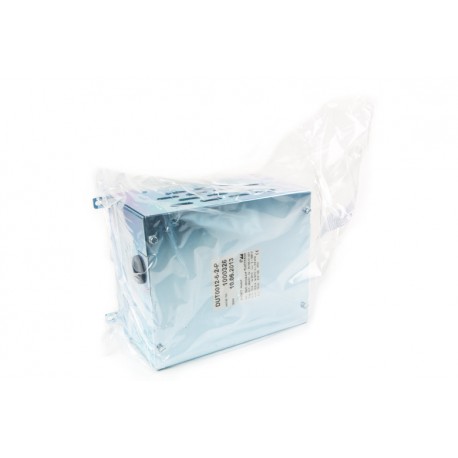

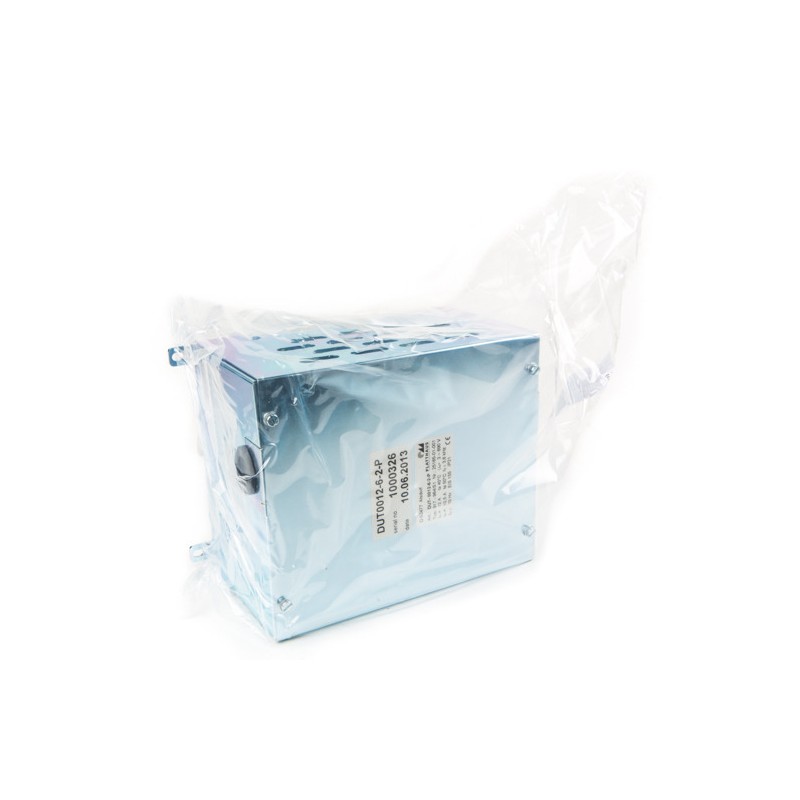

141F1098 VACON DUT filter 12A 690V IP21
Code: 141F1098
Manufacturer: VACON
Description:
DUT filter 12A 690V IP21
DUT-0012-6-2-P dU/dt filter for VACON NX.Voltage: 200 V - 690 VContinuous current: 12 AMax output frequency: 70 Hz without derating / 320 Hz with deratingMax switching frequency fs : 3,6 kHz @ 200V - 500V, 1,5 kHz @ 525 V - 690VTypical losses: 65 WDegree of protection: IP21Dimensions H x W x D: 265 x 195 x 145 mmWeight: 6,4 kg
Categories:
- VACON > Third party articles
Brand new product in its original packaging covered by the warranties and certifications provided by VACON
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
MORE INFO
DUT-0012-6-2-P dU/dt filter for VACON NX.
Voltage: 200 V - 690 V
Continuous current: 12 A
Max output frequency: 70 Hz without derating / 320 Hz with derating
Max switching frequency fs : 3,6 kHz @ 200V - 500V, 1,5 kHz @ 525 V - 690V
Typical losses: 65 W
Degree of protection: IP21
Dimensions H x W x D: 265 x 195 x 145 mm
Weight: 6,4 kg
Product details
| Gross weight | 6.4 Kilogram |
| Net weight | 6.4 Kilogram |
| Volume | 7.493 Liter |
| Gross weight | 6.4 Kilogram |
| Net weight | 6.4 Kilogram |
| Volume | 7.493 Liter |
| Mains Voltage | 690V~ |
| Protection Class | IP21 |
| Mains Voltage | 690V~ |
| Protection Class | IP21 |
