> THOMAS AND BETTS>Cable management flanges>7TAG009610R0001 THOMAS AND BETTS CBL TIE 18LB 4IN MAROON ECTFE
Previous Product Next Product

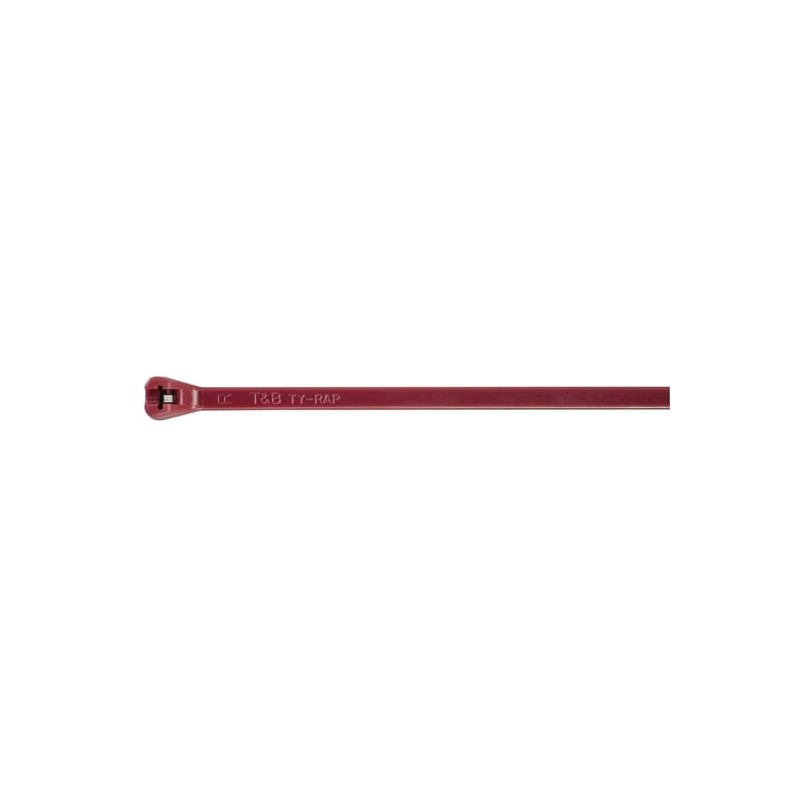

7TAG009610R0001 THOMAS AND BETTS CBL TIE 18LB 4IN MAROON ECTFE View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

7TAG009610R0001 THOMAS AND BETTS CBL TIE 18LB 4IN MAROON ECTFE

TYV523M

7TAG009610R0001

THOMAS AND BETTS

10000

CBL TIE 18LB 4IN MAROON ECTFE

BRIDA TYRAP 92x2,3 FLUOROPOL PURPLE

More details


Cable management flanges

* Brand new product in its original packaging covered by the warranties and certifications provided by THOMAS AND BETTS

Total price: $10,210.32
Unit price: $1.02

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


  • Extended Product Type:
    TYV523M
  • Product ID:
    7TAG009610R0001
  • EAN:
    5414363068105
  • Catalog Description:
    CBL TIE 18LB 4IN MAROON ECTFE
  • Long Description:
    Fluoropolymer Cable Tie, Maroon Fluoropolymer ECTFE, for up to 150 Degrees Celsius (302 F) for Applications Where Smoke Generation is a Concern, Length of 92mm (3.6 Inches), Width of 2.3mm (0.09 Inch), Thickness of 1mm (0.04 Inch), Tensile Strength Rating of 80 Newtons (18 Pounds)

Ordering

  • EAN:
    5414363068105
  • UPC:
    786210713823
  • Country of Origin:
    United States (US)
  • Selling Unit of Measure:
    each

Dimensions

  • Product Net Width:
    .091in
    2.31 mm
  • Product Net Depth / Length:
    3.6in
    92 mm

Container Information

  • Package Level 1 Units:
    100 piece
  • Package Level 1 Width:
    3.5 in
    89 mm
  • Package Level 1 Depth / Length:
    7 in
    178 mm
  • Package Level 2 Units:
    500 piece
  • Package Level 2 Width:
    8 in
    203 mm
  • Package Level 2 Height:
    10 in
    254 mm
  • Package Level 2 Depth / Length:
    12 in
    305 mm
  • Package Level 3 Units:
    5000 piece
  • Package Level 3 Width:
    8.89 in
    226 mm
  • Package Level 3 Height:
    10.8 in
    274 mm
  • Package Level 3 Depth / Length:
    12.9 in
    328 mm

Technical UL/CSA

  • Flammability According to UL94:
    V-0

Additional Information

  • Brand / Label:
    Ty-Rap
  • Bundle Diameter:
    0.63 in
    16 mm
  • Color:
    Maroon
  • Effective Date:
    19891027
  • Lock Type:
    Stainless Steel Barb
  • Material:
    Fluoropolymer ECTFE
  • Product Name:
    NYLON CABLE TIES AND ACCESSORIES
  • Product Type:
    Low Smoke
  • Tensile Strength:
    18 lb
    80 N
  • Thickness:
    0.04 in
    1 mm

Certificates and Declarations

Classifications

  • ETIM 6:
    EC000046 - Cable tie
  • ETIM 7:
    EC000046 - Cable tie
  • ETIM 8:
    EC000046 - Cable tie
  • UNSPSC:
    39121703
  • WEEE Category:
    Product Not in WEEE Scope
  • IDEA Granular Category Code (IGCC):
    5034 >> Cable ties

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE THOMAS&BETTS EN.pdf 15 Mbytes
7TAG009610R0001 7TAG009610R0001 EN_7TAG009610R0001.pdf 74 Kbytes 7TAG009610R0001 7TAG009610R0001 EN_7TAG009610R0001.pdf
