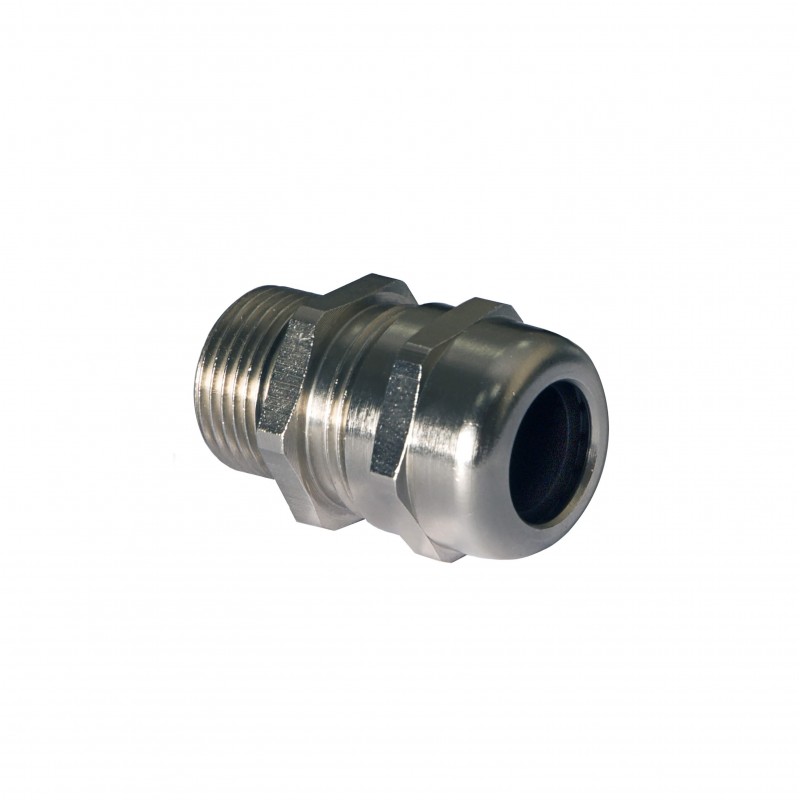

SCG-PG362 7TCA303040R0091 THOMAS AND BETTS PRESS INOX 316 PG36 (22-32)
SCG-PG362
7TCA303040R0091
THOMAS AND BETTS
5
PRESS INOX 316 PG36 (22-32)
SST CG PG36 22-32MM
Cable gland
Brand new product in its original packaging covered by the warranties and certifications provided by THOMAS AND BETTS
Best sellers
▲More info
▲- Extended Product Type:
- SCG-PG362
- Product ID:
- 7TCA303040R0091
- EAN:
- 5415022430264
- Catalog Description:
- SST CG PG36 22-32MM
- Long Description:
- Non Armoured Cable Gland, Thread Size PG36, Cable Range 22 to 32mm, Thread Length 9mm, Stainless Steel
Ordering
- EAN:
- 5415022430264
Dimensions
- Product Net Weight:
- .02lb
9.07 g
Container Information
- Package Level 1 Units:
- 5 piece
- Package Level 1 Width:
- 3.54 in
90 mm
- Package Level 1 Height:
- 3.54 in
90 mm
- Package Level 1 Depth / Length:
- 7.09 in
180 mm
- Package Level 2 Units:
- 10 piece
- Package Level 2 Width:
- 15.75 in
400 mm
- Package Level 2 Height:
- 11.02 in
280 mm
- Package Level 2 Depth / Length:
- 3.94 in
100 mm
Additional Information
- Application:
- General purpose, Panel building, Light fixture and housings
- Brand / Label:
- ABB
- Color:
- Metallic
- Material:
- 316 Stainless Steel
- Number of Batteries:
- 0
- Product Name:
- Stainless Steel CABLE GLAND
- Product Type:
- Non Armoured Cable Gland
- Size:
- PG36
- Standards:
- cULus, RoHS, WEEE, LVD
- Temperature Range:
- -20 to +100 °C
- UPC:
- 786210159256
Certificates and Declarations (Document Number)
- Data Sheet, Technical Information:
- TDS000032
- Declaration of Conformity - CE:
- 9AKK107492A9845
- Instructions and Manuals:
- SCG-PG362
Classifications
- ETIM 6:
- EC000441 - Cable screw gland
- ETIM 7:
- EC000441 - Cable gland
- UNSPSC:
- 39121431
- WEEE Category:
- Product Not in WEEE Scope
- IDEA Granular Category Code (IGCC):
- 4601 >> Cable gland connector
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE THOMAS&BETTS EN.pdf | 18 Mbytes |
|
| SCG-PG362 7TCA303040R0091 EN_7TCA303040R0091.pdf | 77 Kbytes |
|
